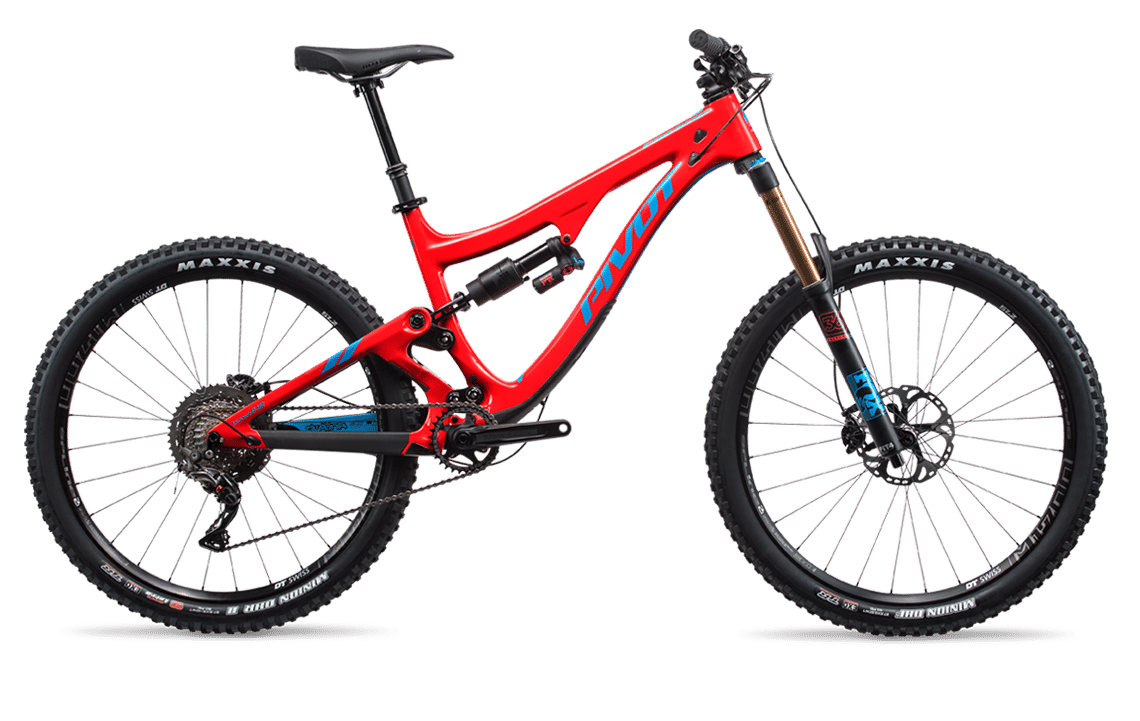

2017 Pivot Firebird geometry
Full frame geometry for the 2017 Pivot Firebird, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 420 | 74 | 65 | 100 | 594 | 394 | 708 | 430 | 1175 |
| M | 595 | 445 | 74 | 65 | 110 | 616 | 426 | 717 | 430 | 1204 |
| L | 604 | 465 | 74 | 65 | 120 | 638 | 457 | 717 | 430 | 1229 |
| XL | 613 | 485 | 74 | 65 | 130 | 661 | 495 | 723 | 430 | 1253 |
All measurements in millimetres unless marked (°) for angles.
