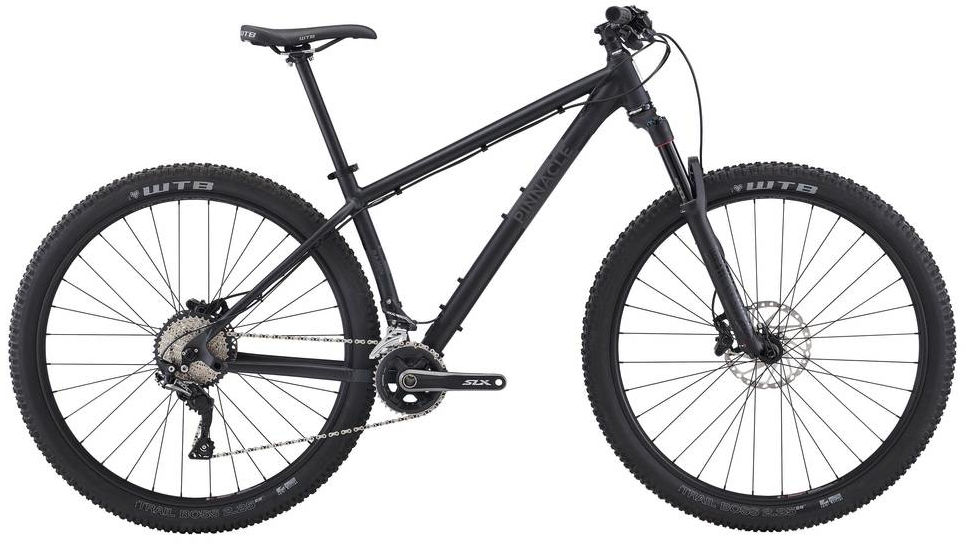

2017 Pinnacle Ramin geometry
Full frame geometry for the 2017 Pinnacle Ramin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 628 | 405 | 71.5 | 66.6 | 100 | 612 | 400 | 792 | 58 | 710 | 435 | 1139 | 51 | 108 |
| M | 633 | 418 | 71.5 | 66.6 | 105 | 626 | 435 | 811 | 58 | 724 | 435 | 1153 | 51 | 108 |
| L | 638 | 430 | 71.5 | 66.6 | 110 | 640 | 470 | 828 | 58 | 738 | 435 | 1167 | 51 | 108 |
| XL | 647 | 447 | 71.5 | 66.6 | 120 | 660 | 505 | 849 | 58 | 759 | 435 | 1188 | 51 | 108 |
All measurements in millimetres unless marked (°) for angles.
