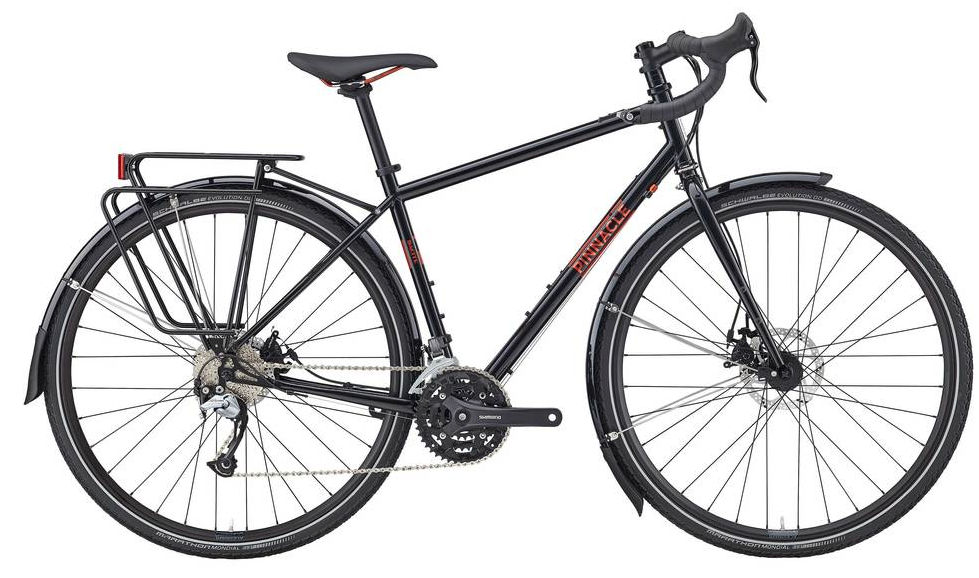

2018 Pinnacle Dacite geometry
Full frame geometry for the 2018 Pinnacle Dacite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 370 | 72.5 | 71.5 | 140 | 558 | 480 | 785 | 76 | 602 | 440 | 1031 | 50 | 62 |
| M | 614 | 376 | 72.5 | 71.5 | 160 | 570 | 510 | 811 | 76 | 615 | 440 | 1044 | 50 | 62 |
| L | 632 | 385 | 72.5 | 71.5 | 180 | 578 | 540 | 833 | 76 | 625 | 440 | 1054 | 50 | 62 |
| XL | 638 | 407 | 73.5 | 71.5 | 190 | 590 | 570 | 851 | 76 | 648 | 440 | 1077 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
