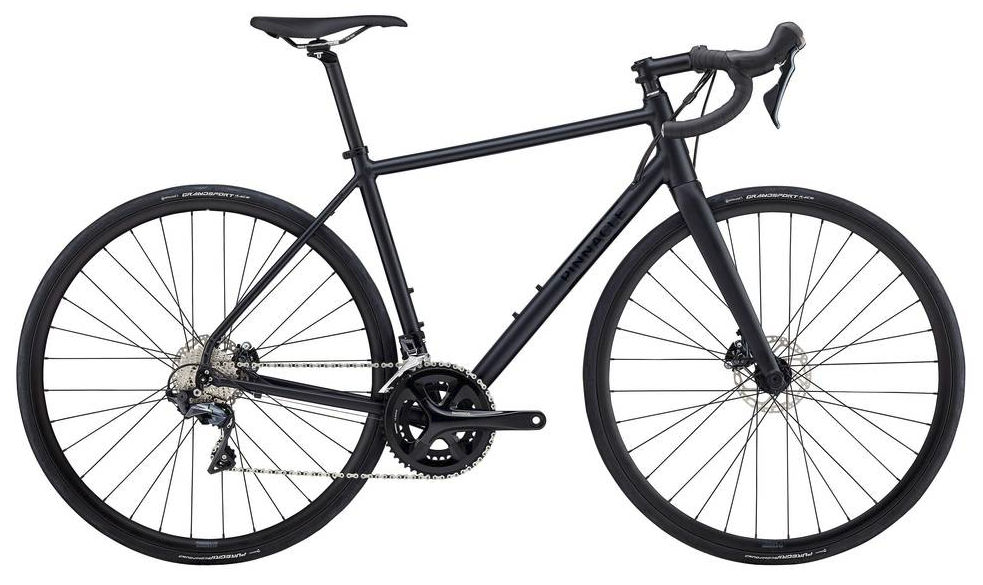

2017 Pinnacle Dolomite geometry
Full frame geometry for the 2017 Pinnacle Dolomite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 555 | 375 | 73 | 72 | 140 | 545 | 470 | 743 | 75 | 586 | 417 | 991 | 48 | 61 |
| M | 575 | 384 | 73 | 72 | 160 | 560 | 500 | 768 | 75 | 601 | 417 | 1007 | 48 | 61 |
| L | 594 | 391 | 73 | 72 | 180 | 575 | 530 | 793 | 75 | 616 | 417 | 1022 | 48 | 61 |
| XL | 613 | 403 | 73 | 72 | 200 | 590 | 560 | 817 | 75 | 631 | 417 | 1037 | 48 | 61 |
All measurements in millimetres unless marked (°) for angles.
