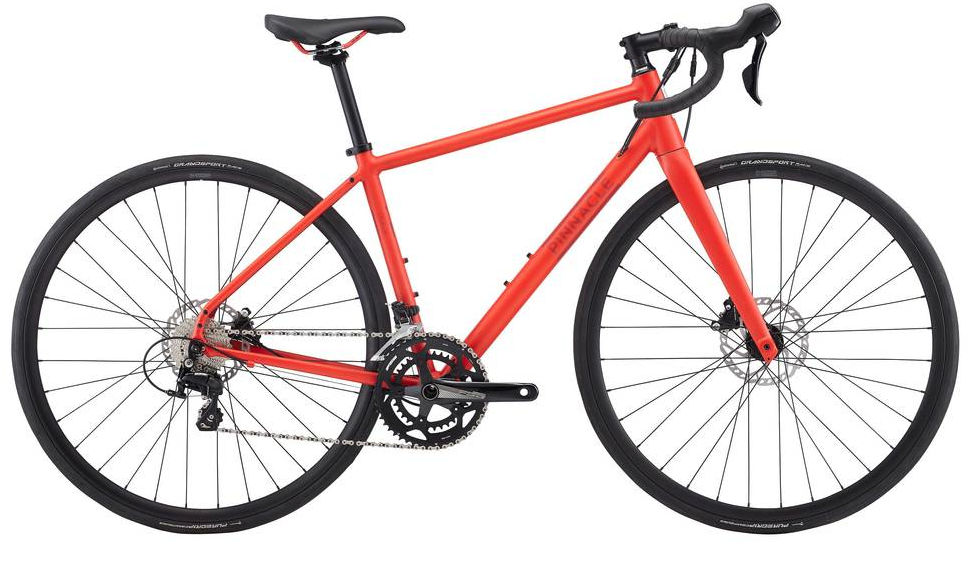

2017 Pinnacle Dolomite Womens geometry
Full frame geometry for the 2017 Pinnacle Dolomite Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 547 | 368 | 74 | 71.5 | 135 | 525 | 420 | 715 | 78 | 581 | 417 | 985 | 48 | 64 |
| M | 562 | 379 | 74 | 71.5 | 150 | 540 | 450 | 737 | 78 | 597 | 417 | 1002 | 48 | 64 |
| T | 578 | 389 | 74 | 72 | 165 | 555 | 480 | 761 | 78 | 607 | 417 | 1012 | 48 | 61 |
All measurements in millimetres unless marked (°) for angles.
