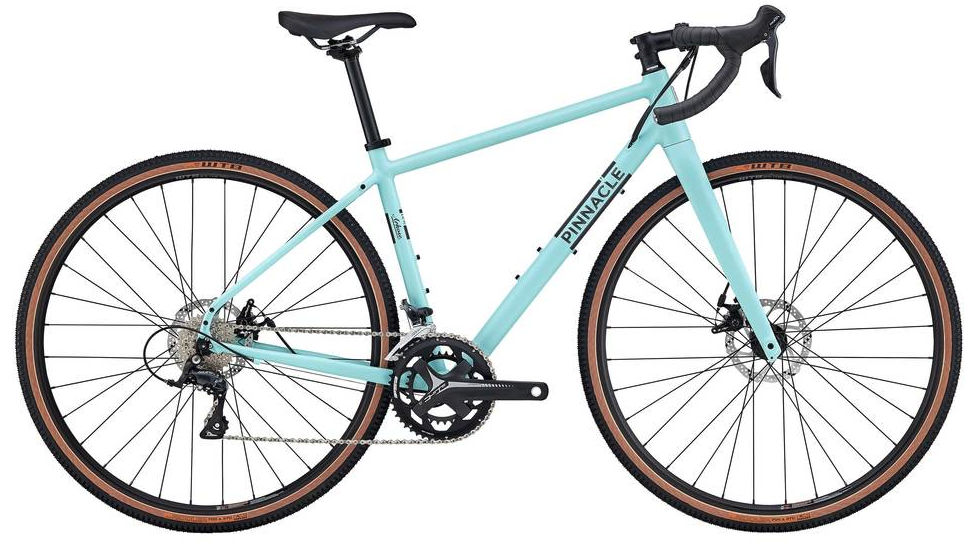

2017 Pinnacle Arkose Womens geometry
Full frame geometry for the 2017 Pinnacle Arkose Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 554 | 371 | 74 | 71 | 135 | 530 | 430 | 736 | 76 | 593 | 434 | 1015 | 50 | 70 |
| M | 576 | 380 | 74 | 71.5 | 155 | 545 | 460 | 763 | 76 | 604 | 434 | 1026 | 50 | 66 |
| T | 595 | 390 | 74 | 71.5 | 175 | 560 | 490 | 787 | 76 | 620 | 434 | 1043 | 50 | 66 |
All measurements in millimetres unless marked (°) for angles.
