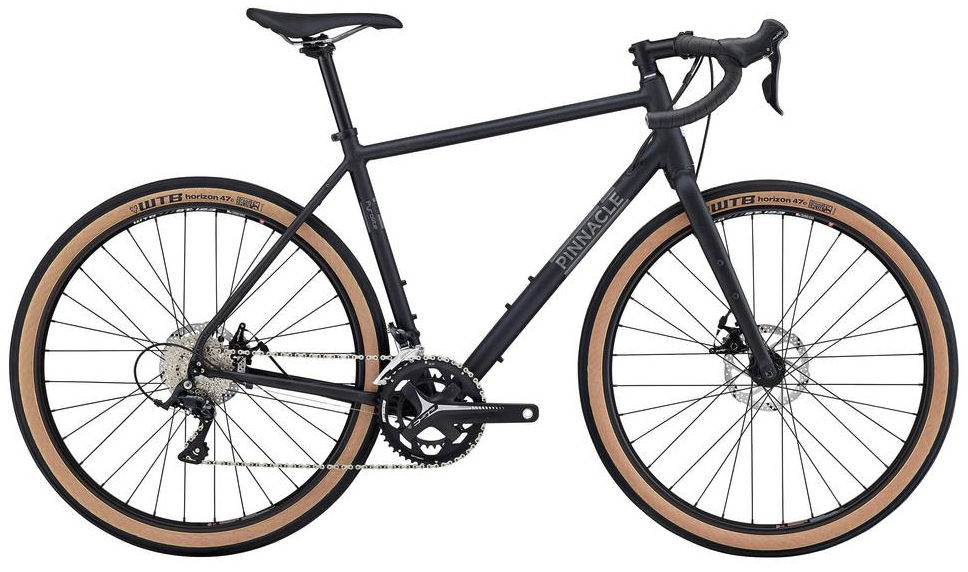

2018 Pinnacle Pyrolite geometry
Full frame geometry for the 2018 Pinnacle Pyrolite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 553 | 376 | 73 | 72.5 | 125 | 545 | 460 | 744 | 75 | 584 | 422 | 994 | 50 | 55 |
| M | 572 | 388 | 73 | 72.5 | 145 | 563 | 490 | 768 | 75 | 602 | 422 | 1013 | 50 | 55 |
| L | 591 | 394 | 73 | 72.5 | 165 | 575 | 520 | 791 | 75 | 614 | 422 | 1025 | 50 | 55 |
| XL | 610 | 403 | 73 | 72.5 | 185 | 590 | 550 | 815 | 75 | 629 | 422 | 1040 | 50 | 55 |
All measurements in millimetres unless marked (°) for angles.
