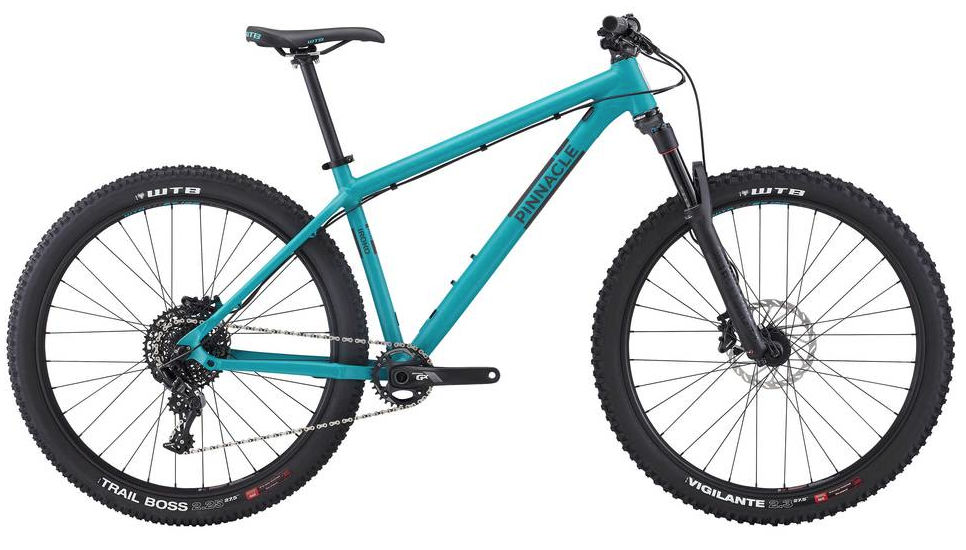

2017 Pinnacle Iroko geometry
Full frame geometry for the 2017 Pinnacle Iroko, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 409 | 72.5 | 66 | 100 | 603 | 400 | 766 | 51 | 703 | 425 | 1123 | 42 | 114 |
| M | 614 | 427 | 72.5 | 66 | 110 | 617 | 435 | 788 | 51 | 722 | 425 | 1142 | 42 | 114 |
| L | 623 | 438 | 72.5 | 66 | 120 | 634 | 470 | 809 | 51 | 740 | 425 | 1160 | 42 | 114 |
| XL | 632 | 453 | 72.5 | 66 | 130 | 652 | 505 | 831 | 51 | 759 | 425 | 1179 | 42 | 114 |
All measurements in millimetres unless marked (°) for angles.
