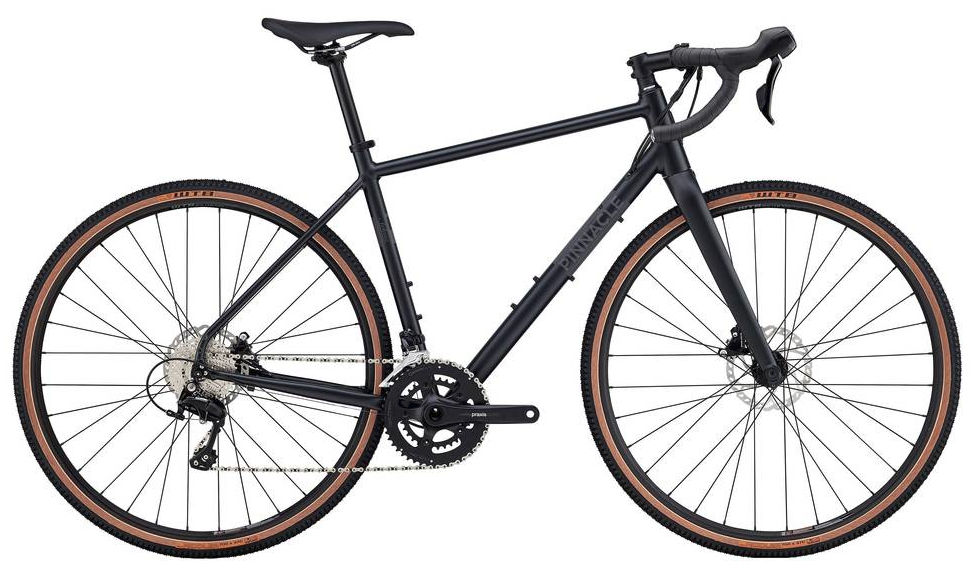

2017 Pinnacle Arkose geometry
Full frame geometry for the 2017 Pinnacle Arkose, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 570 | 376 | 73.5 | 71.5 | 135 | 545 | 480 | 678 | 76 | 599 | 434 | 1021 | 50 | 66 |
| M | 590 | 387 | 73.5 | 71.5 | 155 | 562 | 510 | 692 | 76 | 616 | 434 | 1039 | 50 | 66 |
| L | 607 | 398 | 73.5 | 71.5 | 175 | 578 | 540 | 815 | 76 | 633 | 434 | 1056 | 50 | 66 |
| XL | 632 | 408 | 73.5 | 71.5 | 200 | 595 | 570 | 842 | 76 | 651 | 434 | 1074 | 50 | 66 |
All measurements in millimetres unless marked (°) for angles.
