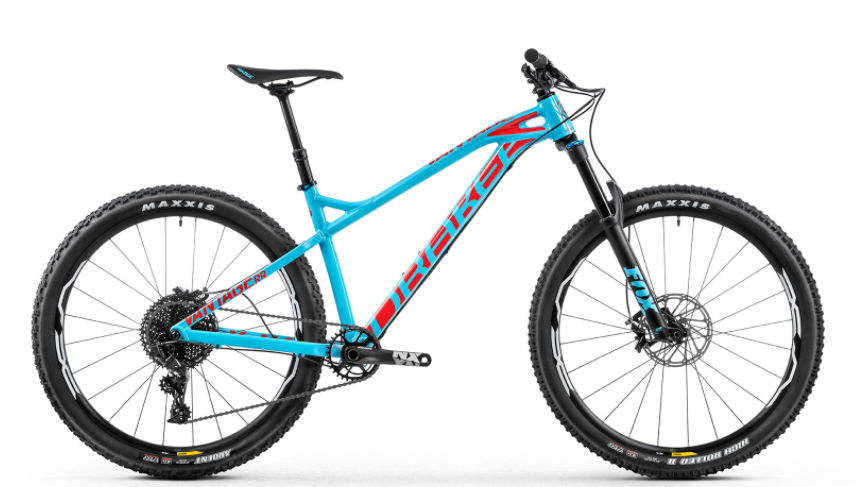

2018 Mondraker Vantage RR geometry
Full frame geometry for the 2018 Mondraker Vantage RR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 601 | 462 | 74 | 66 | 100 | 635 | 420 | 50 | 425 | 1181 | 44 |
| S | 601 | 442 | 74 | 66 | 100 | 615 | 380 | 50 | 425 | 1161 | 44 |
| L | 610 | 484 | 74 | 66 | 110 | 660 | 470 | 50 | 425 | 1207 | 44 |
| XL | 620 | 502 | 74 | 66 | 120 | 680 | 510 | 50 | 425 | 1229 | 44 |
All measurements in millimetres unless marked (°) for angles.
