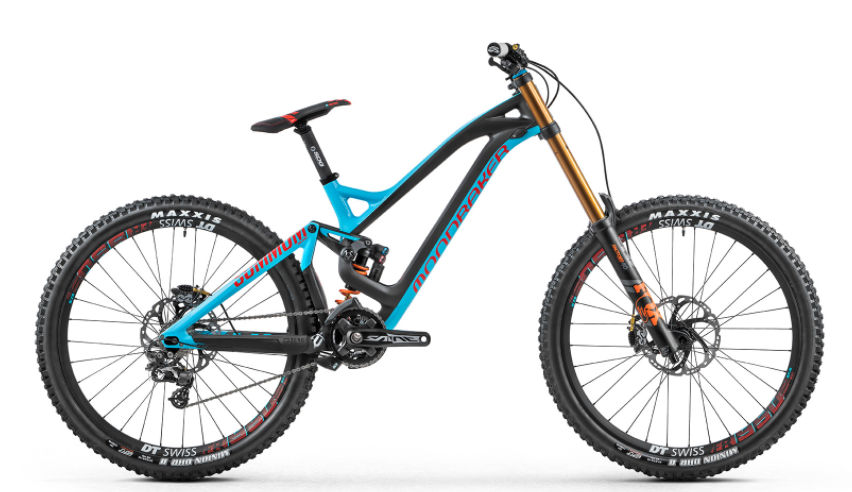

2018 Mondraker Summum Carbon geometry
Full frame geometry for the 2018 Mondraker Summum Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 597 | 422 | 73.5 | 63 | 112 | 600 | 400 | 0 | 1225 | 52 |
| S | 597 | 397 | 73.5 | 63 | 112 | 575 | 400 | 0 | 1200 | 52 |
| L | 606 | 442 | 73.5 | 63 | 122 | 622 | 400 | 0 | 1250 | 52 |
| XL | 606 | 468 | 73.5 | 63 | 122 | 647 | 400 | 0 | 1280 | 52 |
All measurements in millimetres unless marked (°) for angles.
