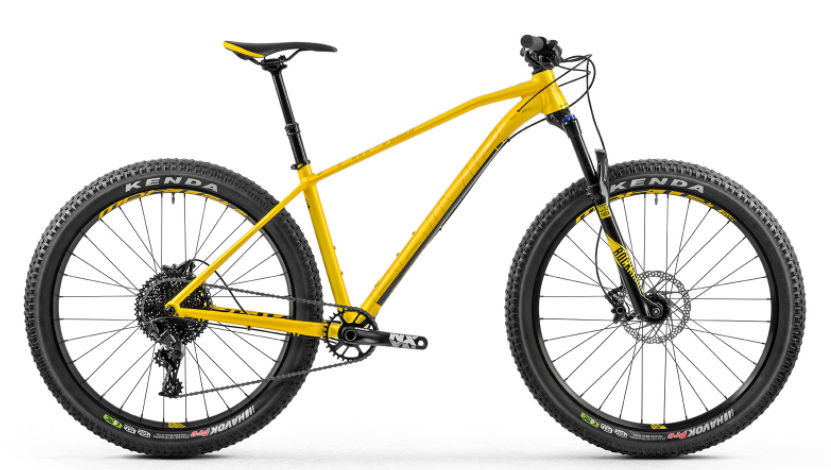

2018 Mondraker Prime geometry
Full frame geometry for the 2018 Mondraker Prime, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 620 | 432 | 74 | 69 | 90 | 610 | 390 | 60 | 435 | 1133 | 51 |
| M | 630 | 459 | 74 | 69 | 100 | 640 | 430 | 60 | 435 | 1163 | 51 |
| L | 639 | 487 | 74 | 69 | 110 | 670 | 470 | 60 | 435 | 1194 | 51 |
| XL | 648 | 514 | 74 | 69 | 120 | 700 | 510 | 60 | 435 | 1225 | 51 |
All measurements in millimetres unless marked (°) for angles.
