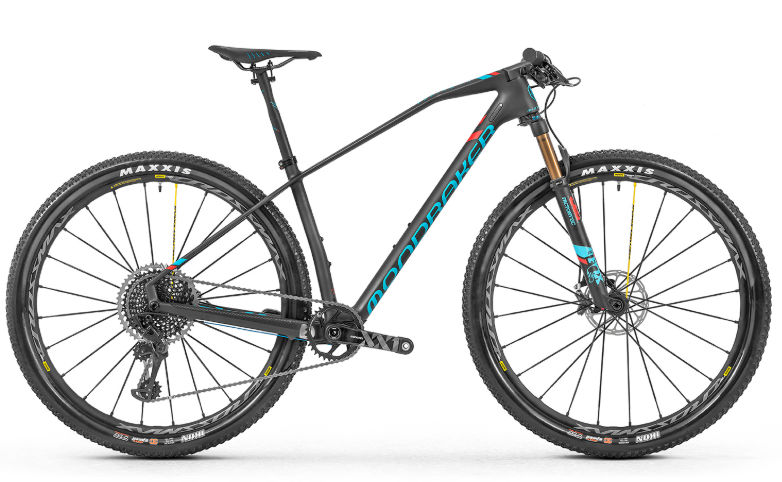

2018 Mondraker Podium Carbon geometry
Full frame geometry for the 2018 Mondraker Podium Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 637 | 402 | 73.5 | 70 | 85 | 590 | 395 | 65 | 432 | 1086 | 44 |
| M | 642 | 420 | 73.5 | 70 | 90 | 610 | 430 | 65 | 432 | 1106 | 44 |
| L | 651 | 437 | 73.5 | 70 | 100 | 630 | 470 | 65 | 432 | 1127 | 44 |
| XL | 666 | 452 | 73.5 | 70 | 115 | 650 | 520 | 65 | 432 | 1147 | 44 |
All measurements in millimetres unless marked (°) for angles.
