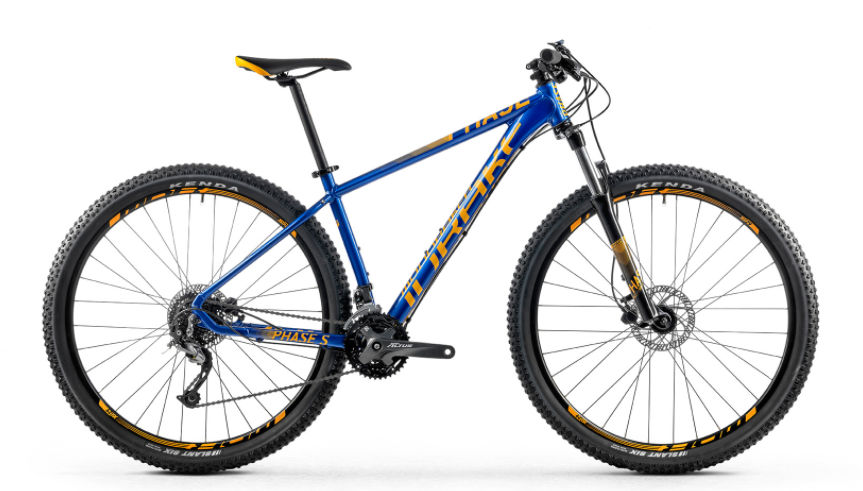

2018 Mondraker Phase 29 geometry
Full frame geometry for the 2018 Mondraker Phase 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 616 | 417 | 73.5 | 69.5 | 100 | 600 | 440 | 65 | 445 | 1112 | 46 |
| S | 616 | 392 | 73.5 | 69.5 | 100 | 575 | 400 | 65 | 445 | 1087 | 46 |
| L | 625 | 434 | 73.5 | 69.5 | 110 | 620 | 480 | 65 | 445 | 1133 | 46 |
| XL | 639 | 450 | 73.5 | 69.5 | 125 | 640 | 520 | 65 | 445 | 1154 | 46 |
All measurements in millimetres unless marked (°) for angles.
