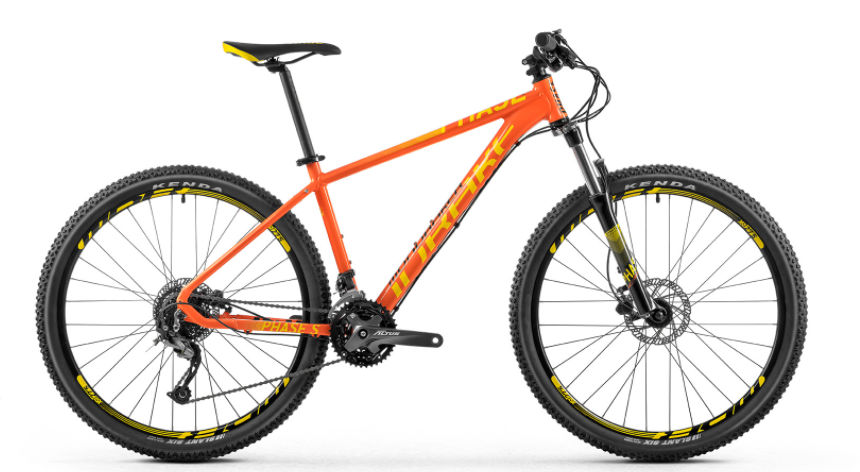

2018 Mondraker Phase 27.5 geometry
Full frame geometry for the 2018 Mondraker Phase 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 583 | 432 | 74 | 68.5 | 100 | 600 | 430 | 50 | 425 | 1110 | 42 |
| S | 583 | 407 | 74 | 68.5 | 100 | 575 | 380 | 50 | 425 | 1085 | 42 |
| L | 592 | 450 | 74 | 68.5 | 110 | 620 | 480 | 50 | 425 | 1131 | 42 |
| XL | 611 | 464 | 74 | 68.5 | 130 | 640 | 530 | 50 | 425 | 1153 | 42 |
All measurements in millimetres unless marked (°) for angles.
