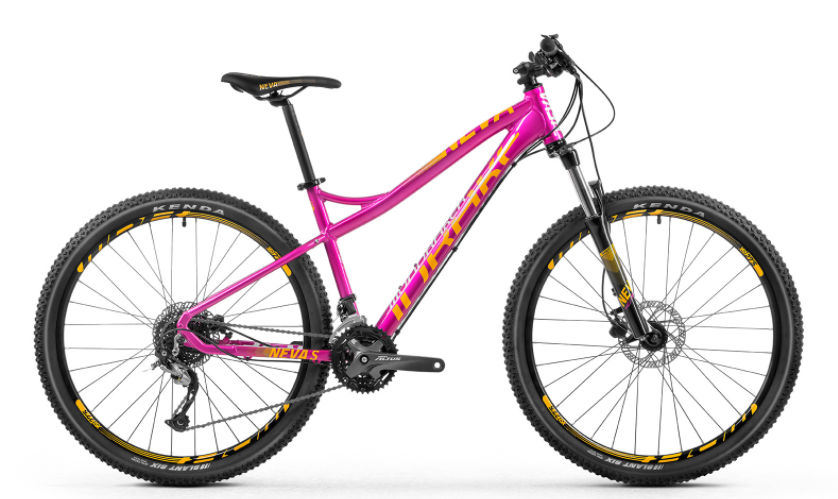

2018 Mondraker Neva geometry
Full frame geometry for the 2018 Mondraker Neva, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 366 | 74 | 68.5 | 100 | 535 | 330 | 55 | 425 | 1042 | 42 |
| M | 607 | 380 | 74 | 68.5 | 120 | 555 | 380 | 55 | 425 | 1064 | 42 |
| L | 616 | 403 | 74 | 68.5 | 130 | 580 | 430 | 55 | 425 | 1090 | 42 |
| XL | 626 | 420 | 74 | 68.5 | 140 | 600 | 480 | 55 | 425 | 1112 | 42 |
All measurements in millimetres unless marked (°) for angles.
