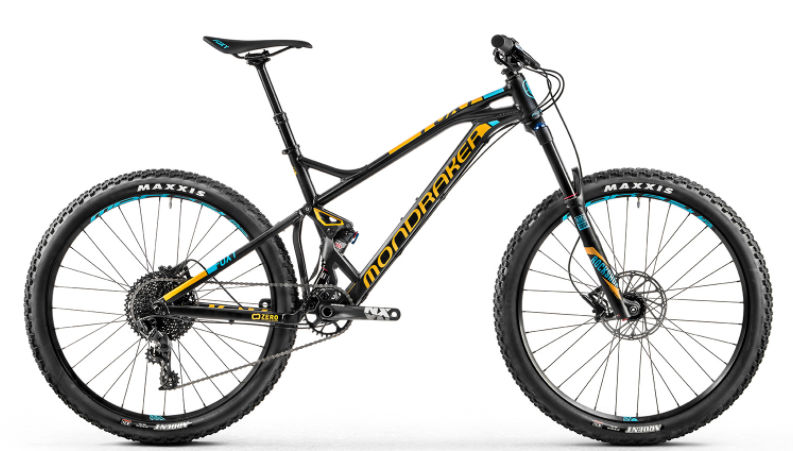

2018 Mondraker Foxy geometry
Full frame geometry for the 2018 Mondraker Foxy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 586 | 480 | 74.5 | 66.5 | 110 | 636 | 420 | 9 | 430 | 1200 | 44 |
| S | 586 | 455 | 74.5 | 66.5 | 110 | 611 | 380 | 9 | 430 | 1175 | 44 |
| L | 595 | 500 | 74.5 | 66.5 | 120 | 659 | 470 | 9 | 430 | 1224 | 44 |
| XL | 604 | 520 | 74.5 | 66.5 | 130 | 681 | 510 | 9 | 430 | 1248 | 44 |
All measurements in millimetres unless marked (°) for angles.
