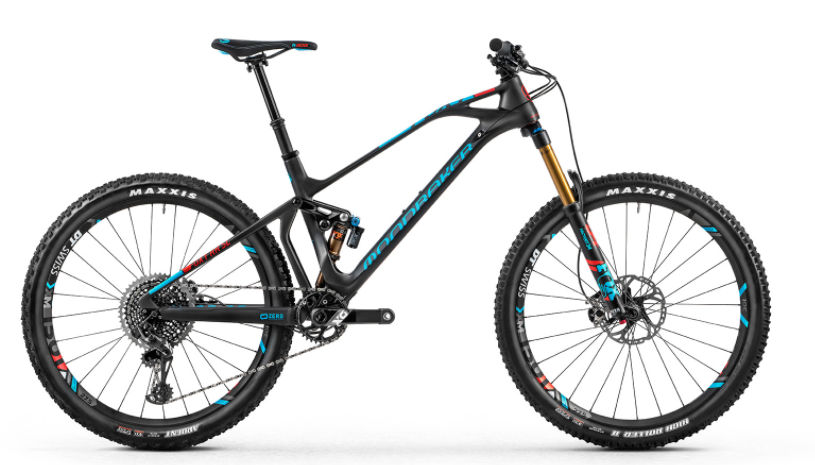

2018 Mondraker Foxy Carbon geometry
Full frame geometry for the 2018 Mondraker Foxy Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 460 | 75 | 66 | 110 | 616 | 380 | 9 | 1189 | 44 |
| M | 593 | 480 | 75 | 66 | 120 | 638 | 420 | 9 | 1213 | 44 |
| L | 611 | 500 | 75 | 66 | 140 | 663 | 470 | 9 | 1241 | 44 |
| XL | 620 | 520 | 75 | 66 | 150 | 686 | 510 | 9 | 1265 | 44 |
All measurements in millimetres unless marked (°) for angles.
