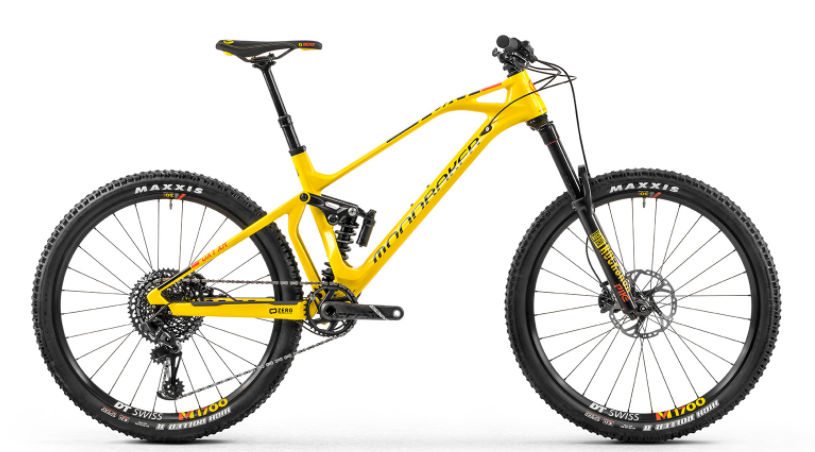

2018 Mondraker Foxy Carbon XR geometry
Full frame geometry for the 2018 Mondraker Foxy Carbon XR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 454 | 74.5 | 65.5 | 110 | 618 | 380 | 5 | 1194 | 44 |
| M | 597 | 474 | 74.5 | 65.5 | 120 | 640 | 420 | 5 | 1217 | 44 |
| L | 616 | 494 | 74.5 | 65.5 | 140 | 665 | 470 | 5 | 1246 | 44 |
| XL | 625 | 514 | 74.5 | 65.5 | 150 | 688 | 510 | 5 | 1270 | 44 |
All measurements in millimetres unless marked (°) for angles.
