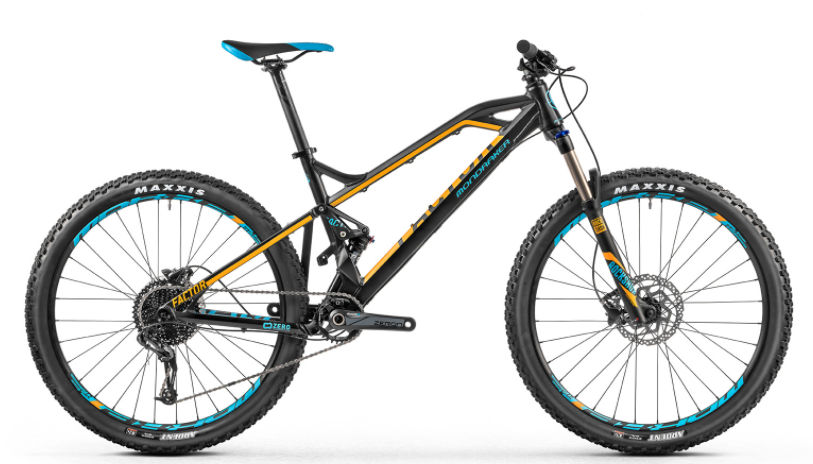

2018 Mondraker Factor geometry
Full frame geometry for the 2018 Mondraker Factor, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 559 | 465 | 75 | 68 | 100 | 615 | 380 | 12 | 430 | 1161 | 42 |
| M | 568 | 482 | 75 | 68 | 110 | 635 | 420 | 12 | 430 | 1182 | 42 |
| L | 577 | 505 | 75 | 68 | 120 | 660 | 470 | 12 | 430 | 1209 | 42 |
| XL | 587 | 523 | 75 | 68 | 130 | 680 | 510 | 12 | 430 | 1230 | 42 |
All measurements in millimetres unless marked (°) for angles.
