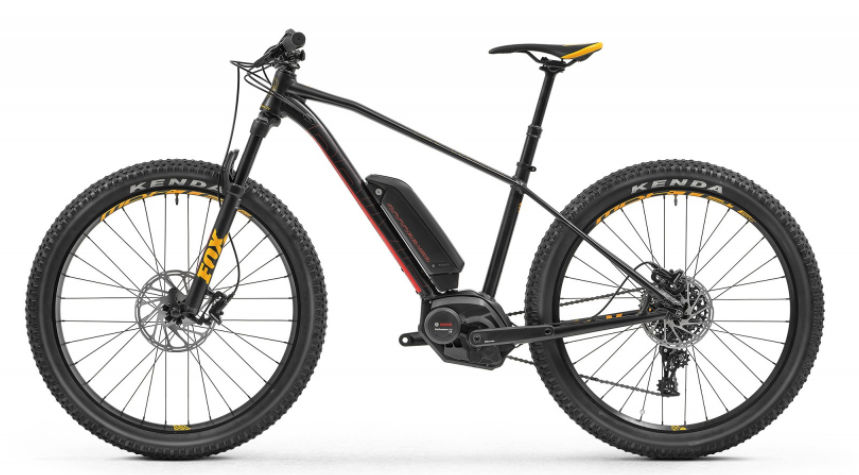

2018 Mondraker E-Prime geometry
Full frame geometry for the 2018 Mondraker E-Prime, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 610 | 398 | 74 | 69 | 90 | 580 | 370 | 7 | 485 | 1141 | 51 |
| S | 620 | 425 | 73.5 | 69 | 90 | 610 | 390 | 60 | 485 | 1177 | 51 |
| M | 630 | 455 | 73.5 | 69 | 100 | 640 | 430 | 60 | 485 | 1208 | 51 |
| L | 640 | 480 | 73.5 | 69 | 110 | 670 | 470 | 60 | 485 | 1239 | 51 |
| XL | 650 | 510 | 73.5 | 69 | 120 | 700 | 510 | 60 | 485 | 1270 | 51 |
All measurements in millimetres unless marked (°) for angles.
