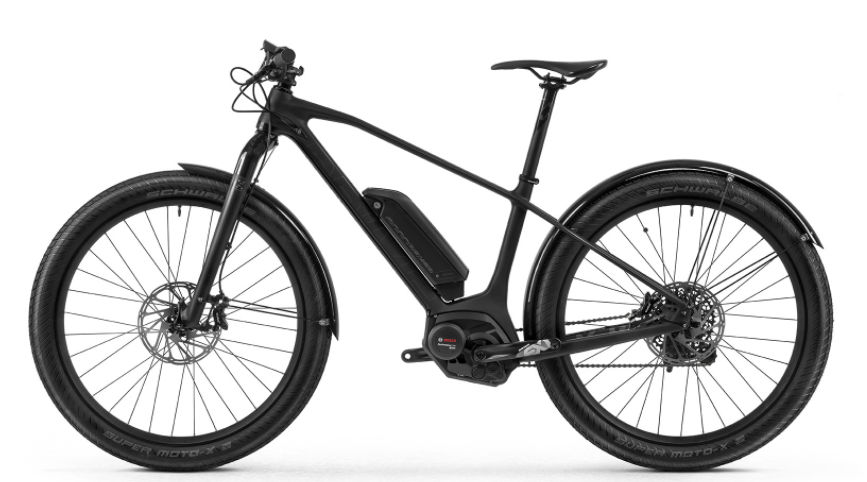

2018 Mondraker E-Prime Carbon geometry
Full frame geometry for the 2018 Mondraker E-Prime Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 440 | 75 | 70 | 90 | 609 | 390 | 73 | 480 | 1151 | 43 |
| M | 615 | 470 | 75 | 70 | 100 | 634 | 430 | 73 | 480 | 1182 | 43 |
| L | 625 | 495 | 75 | 70 | 110 | 657 | 470 | 73 | 480 | 1213 | 43 |
| XL | 635 | 525 | 75 | 70 | 120 | 681 | 510 | 73 | 480 | 1244 | 43 |
All measurements in millimetres unless marked (°) for angles.
