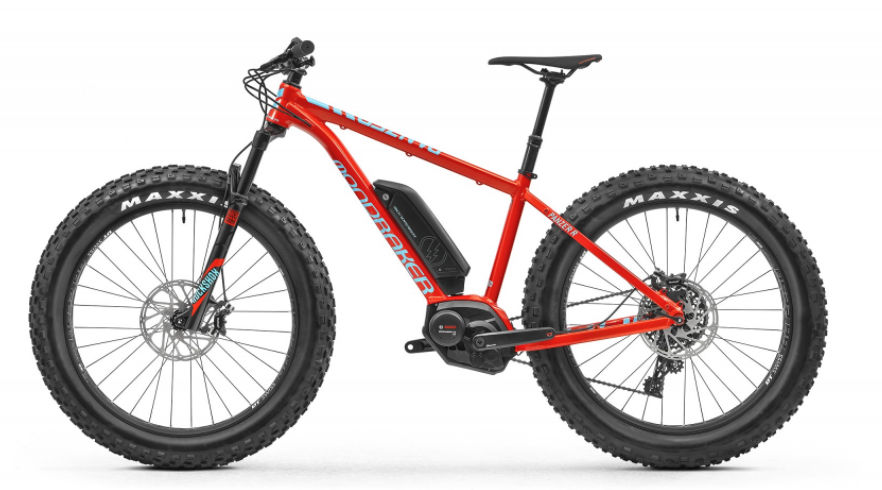

2018 Mondraker E-Panzer geometry
Full frame geometry for the 2018 Mondraker E-Panzer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 433 | 73.5 | 68.5 | 90 | 615 | 380 | 55 | 485 | 1190 | 51 |
| M | 623 | 451 | 73.5 | 68.5 | 100 | 635 | 430 | 55 | 485 | 1211 | 51 |
| L | 632 | 473 | 73.5 | 68.5 | 110 | 660 | 480 | 55 | 485 | 1237 | 51 |
| XL | 646 | 494 | 73.5 | 68.5 | 125 | 685 | 520 | 55 | 485 | 1263 | 51 |
All measurements in millimetres unless marked (°) for angles.
