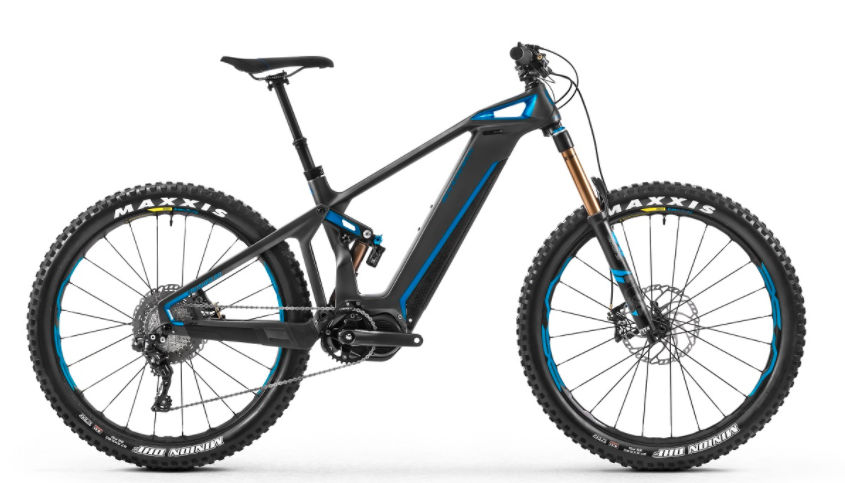

2018 Mondraker E-Crusher geometry
Full frame geometry for the 2018 Mondraker E-Crusher, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 609 | 466 | 74.5 | 66.5 | 100 | 636 | 420 | 18 | 450 | 1226 | 51 |
| S | 609 | 441 | 74.5 | 66.5 | 100 | 608 | 380 | 18 | 450 | 1201 | 51 |
| L | 623 | 486 | 74.5 | 66.5 | 115 | 658 | 470 | 18 | 450 | 1252 | 51 |
| XL | 637 | 506 | 74.5 | 66.5 | 130 | 684 | 500 | 18 | 450 | 1281 | 51 |
All measurements in millimetres unless marked (°) for angles.
