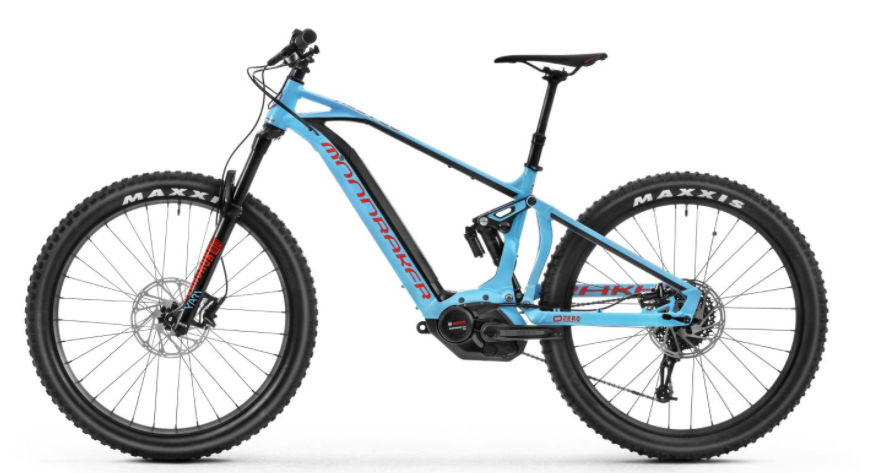

2018 Mondraker E-Crafty R geometry
Full frame geometry for the 2018 Mondraker E-Crafty R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 454 | 75.5 | 66.5 | 100 | 610 | 380 | 28 | 475 | 1231 | 44 |
| M | 614 | 479 | 75.5 | 66.5 | 120 | 640 | 420 | 28 | 475 | 1264 | 44 |
| L | 632 | 499 | 75.5 | 66.5 | 140 | 665 | 470 | 28 | 475 | 1292 | 44 |
| XL | 641 | 519 | 75.5 | 66.5 | 150 | 688 | 500 | 28 | 475 | 1316 | 44 |
All measurements in millimetres unless marked (°) for angles.
