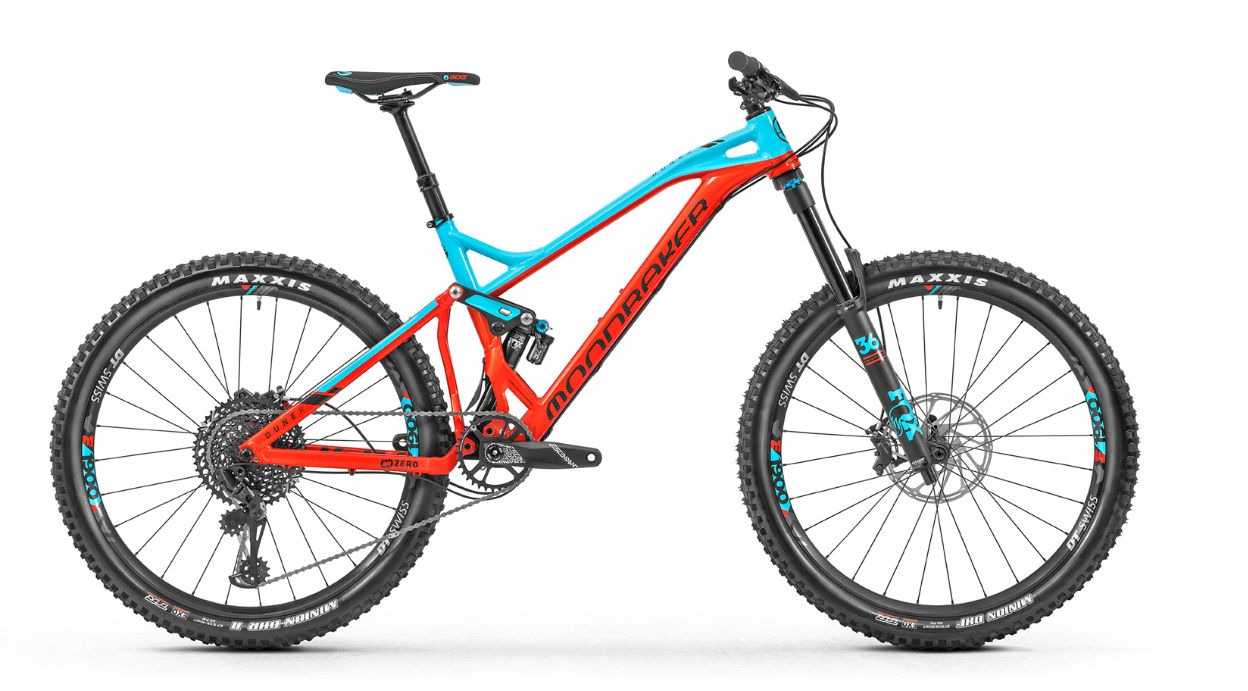

2019 Mondraker Dune MK II geometry
Full frame geometry for the 2019 Mondraker Dune MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 470 | 74.5 | 65.5 | 110 | 636 | 420 | 1 | 434 | 1215 | 37 |
| S | 595 | 445 | 74.5 | 65.5 | 110 | 610 | 380 | 1 | 434 | 1190 | 37 |
| L | 603 | 490 | 74.5 | 65.5 | 120 | 659 | 470 | 1 | 434 | 1240 | 37 |
| XL | 612 | 510 | 74.5 | 65.5 | 120 | 680 | 510 | 1 | 434 | 1264 | 37 |
All measurements in millimetres unless marked (°) for angles.
