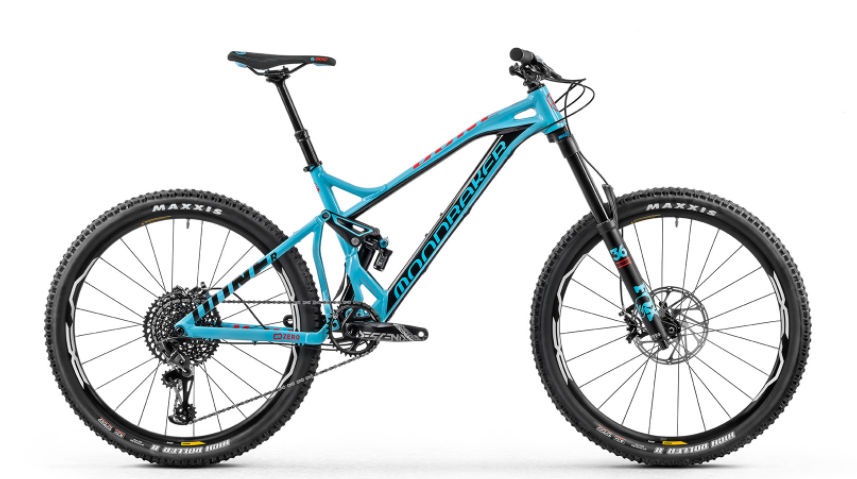

2018 Mondraker Dune MK I geometry
Full frame geometry for the 2018 Mondraker Dune MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 590 | 475 | 74.7 | 66 | 110 | 630 | 420 | 5 | 1218 | 44 |
| S | 593 | 450 | 74.7 | 66 | 110 | 610 | 380 | 5 | 1198 | 44 |
| L | 602 | 495 | 74.7 | 66 | 120 | 655 | 470 | 5 | 1243 | 44 |
| XL | 611 | 515 | 74.7 | 66 | 130 | 673 | 510 | 5 | 1265 | 44 |
All measurements in millimetres unless marked (°) for angles.
