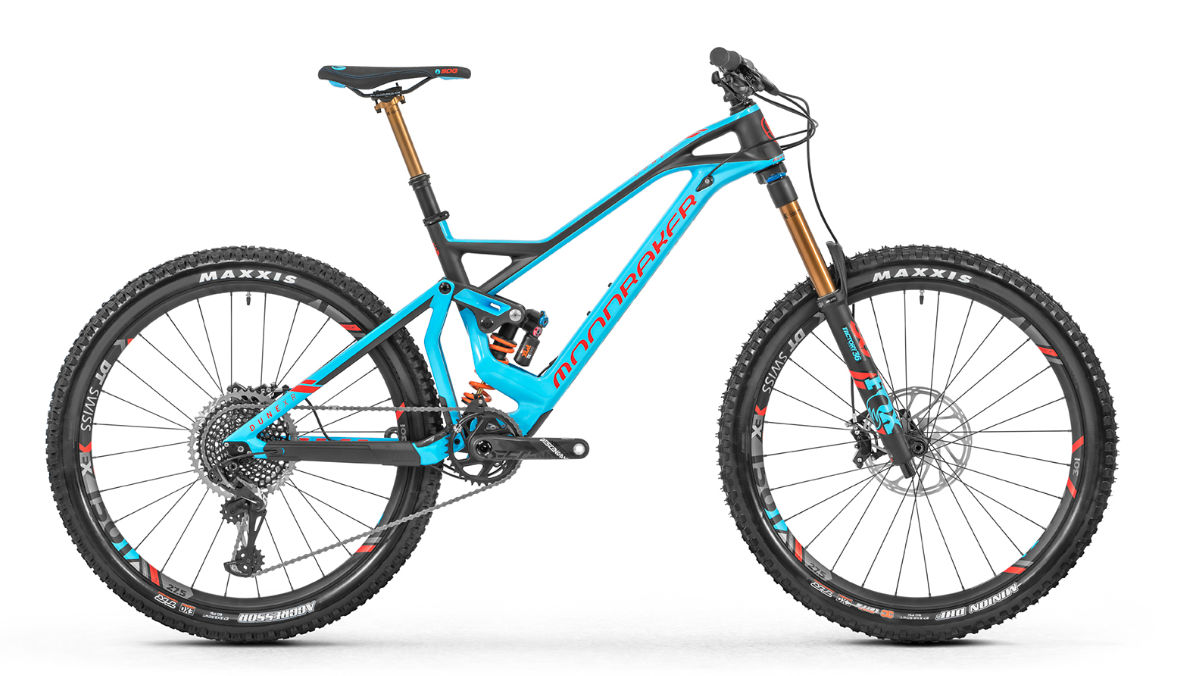

2019 Mondraker Dune Carbon MK II geometry
Full frame geometry for the 2019 Mondraker Dune Carbon MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 597 | 465 | 75 | 66 | 110 | 630 | 420 | 1 | 435 | 1205 | 37 |
| S | 597 | 445 | 75 | 66 | 110 | 610 | 380 | 1 | 435 | 1185 | 37 |
| L | 606 | 485 | 75 | 66 | 120 | 655 | 470 | 1 | 435 | 1230 | 37 |
| XL | 615 | 503 | 75 | 66 | 130 | 673 | 510 | 1 | 435 | 1250 | 37 |
All measurements in millimetres unless marked (°) for angles.
