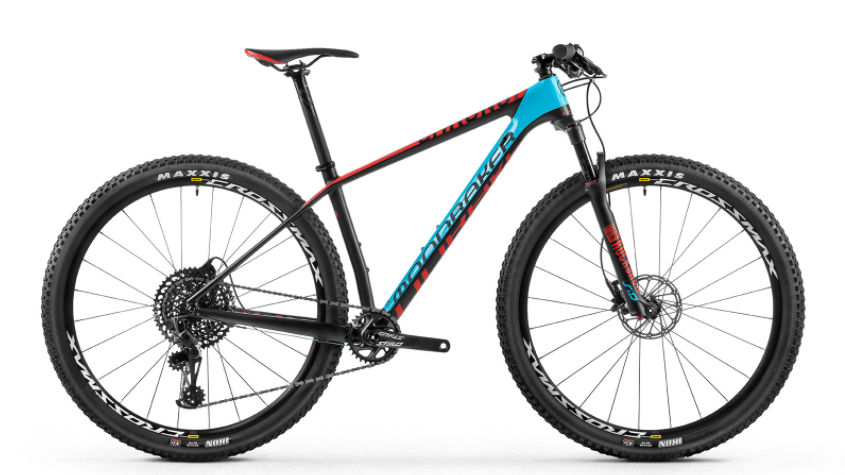

2018 Mondraker Chrono Carbon geometry
Full frame geometry for the 2018 Mondraker Chrono Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 621 | 416 | 73.5 | 70.5 | 100 | 600 | 430 | 65 | 438 | 1097 | 46 |
| L | 640 | 433 | 73.5 | 70.5 | 110 | 620 | 480 | 65 | 438 | 1118 | 46 |
| XL | 659 | 447 | 73.5 | 70.5 | 125 | 640 | 520 | 65 | 438 | 1140 | 46 |
All measurements in millimetres unless marked (°) for angles.
