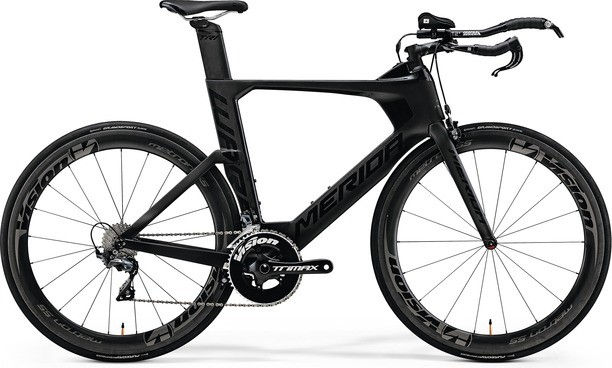

2015 Merida Warp Tri geometry
Full frame geometry for the 2015 Merida Warp Tri, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 504 | 410 | 78 | 71 | 120 | 517 | 510 | 835 | 55 | 612 | 408 | 1014 |
| 54 | 557 | 432 | 78 | 72 | 156 | 550 | 540 | 868 | 70 | 639 | 408 | 1037 |
| 57 | 589 | 447 | 78 | 72 | 190 | 572 | 570 | 898 | 70 | 665 | 408 | 1063 |
All measurements in millimetres unless marked (°) for angles.
