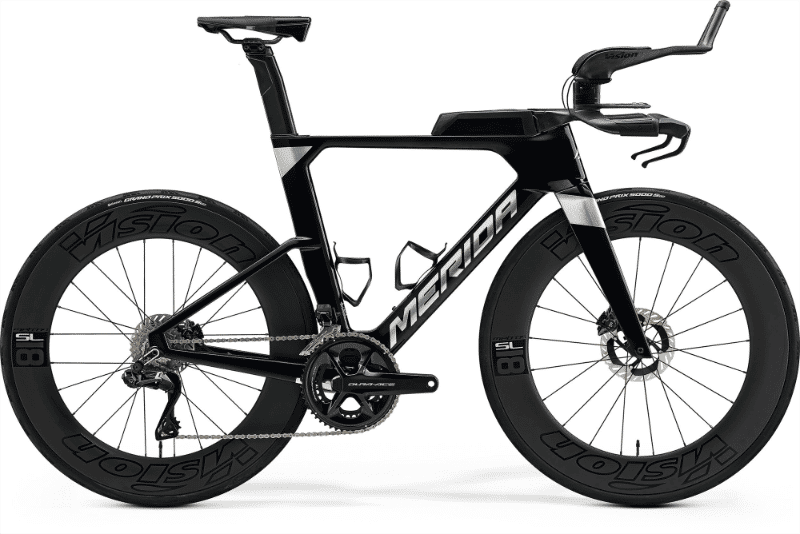

2026 Merida Time Warp geometry
Full frame geometry for the 2026 Merida Time Warp, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 496 | 376 | 77 | 71 | 110 | 490 | 460 | 752 | 55 | 415 | 984 |
| S | 518 | 381 | 76 | 72 | 130 | 510 | 500 | 781 | 55 | 415 | 988 |
| M | 533 | 417 | 76 | 72 | 130 | 550 | 540 | 799 | 70 | 415 | 1022 |
| L | 574 | 427 | 76 | 72 | 173 | 570 | 580 | 838 | 70 | 415 | 1045 |
All measurements in millimetres unless marked (°) for angles.
