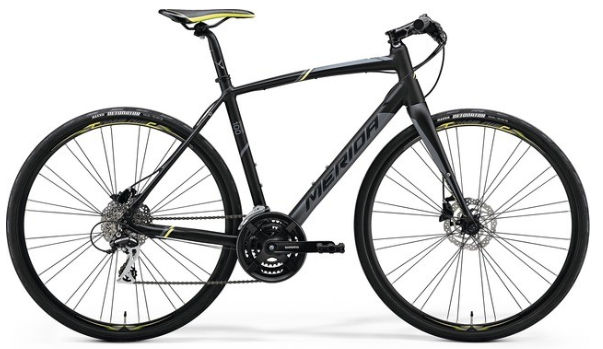

2017 Merida Speeder Lite geometry
Full frame geometry for the 2017 Merida Speeder Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/47 | 566 | 368 | 74.5 | 71 | 150 | 525 | 470 | 745 | 65 | 591 | 435 | 1018 |
| S/50 | 579 | 370 | 74.5 | 72 | 160 | 530 | 500 | 771 | 65 | 583 | 435 | 1009 |
| SM/52 | 589 | 371 | 74 | 72 | 170 | 540 | 520 | 787 | 65 | 592 | 435 | 1019 |
| ML/54 | 609 | 370 | 73.5 | 72.5 | 190 | 550 | 540 | 806 | 65 | 591 | 435 | 1018 |
| L/56 | 635 | 371 | 73 | 73 | 215 | 565 | 560 | 826 | 65 | 590 | 435 | 1017 |
| XL/59 | 659 | 379 | 73 | 73 | 240 | 580 | 590 | 854 | 65 | 605 | 435 | 1032 |
All measurements in millimetres unless marked (°) for angles.
