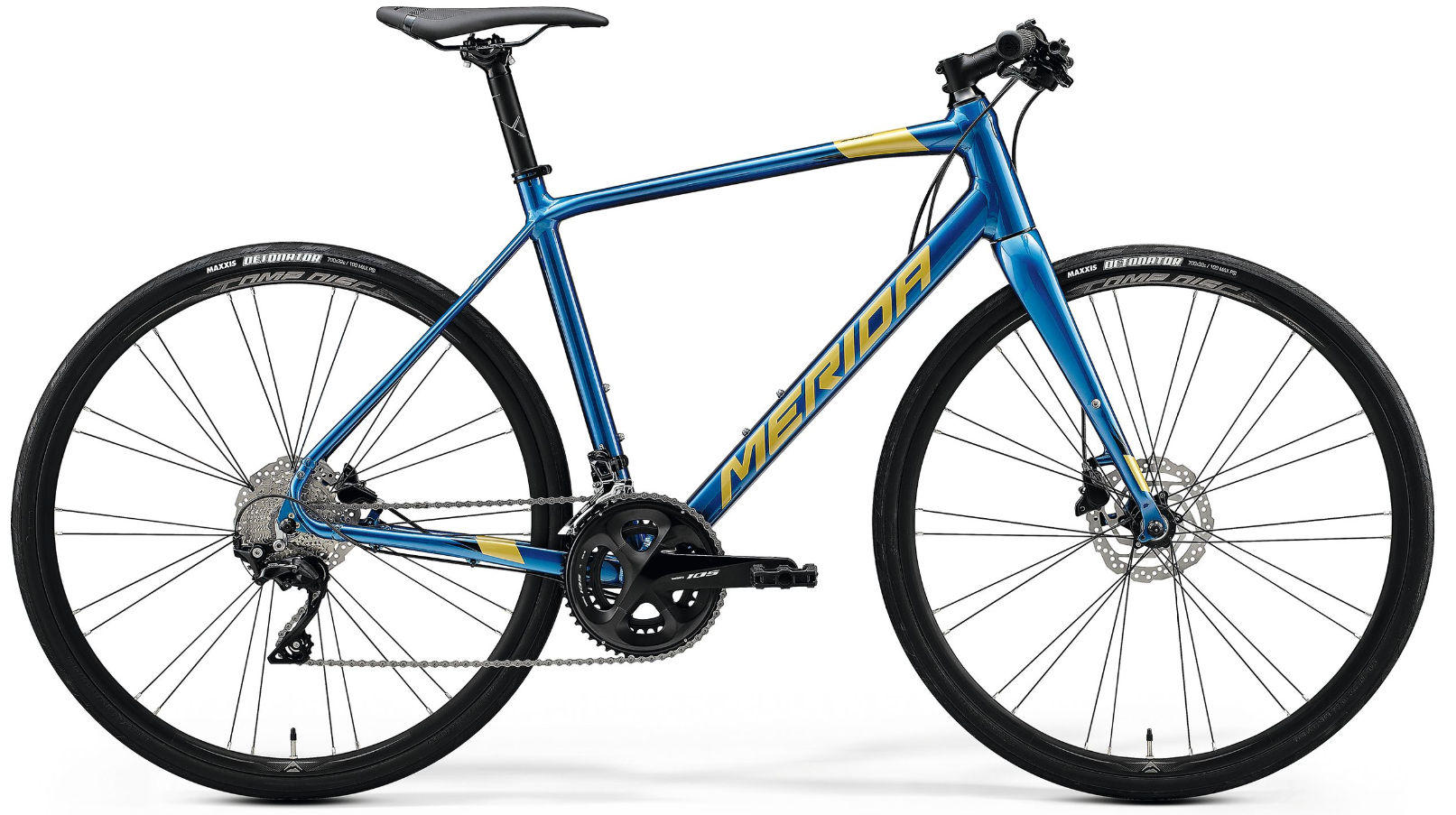

2020 Merida Speeder Lite II geometry
Full frame geometry for the 2020 Merida Speeder Lite II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS (47) | 562 | 388 | 73.5 | 70 | 150 | 555 | 470 | 774 | 65 | 621 | 438 | 1050 |
| S (50) | 573 | 392 | 73.5 | 70.5 | 160 | 561 | 500 | 795 | 65 | 623 | 438 | 1052 |
| SM (52) | 584 | 398 | 73.5 | 71 | 170 | 571 | 520 | 812 | 65 | 628 | 438 | 1058 |
| ML (54) | 606 | 404 | 73.5 | 71.5 | 190 | 583 | 540 | 832 | 65 | 636 | 438 | 1066 |
| L (56) | 631 | 410 | 73.5 | 72 | 215 | 597 | 560 | 856 | 65 | 645 | 438 | 1074 |
| XL (59) | 655 | 416 | 73.5 | 72 | 240 | 610 | 590 | 883 | 65 | 658 | 438 | 1088 |
All measurements in millimetres unless marked (°) for angles.
