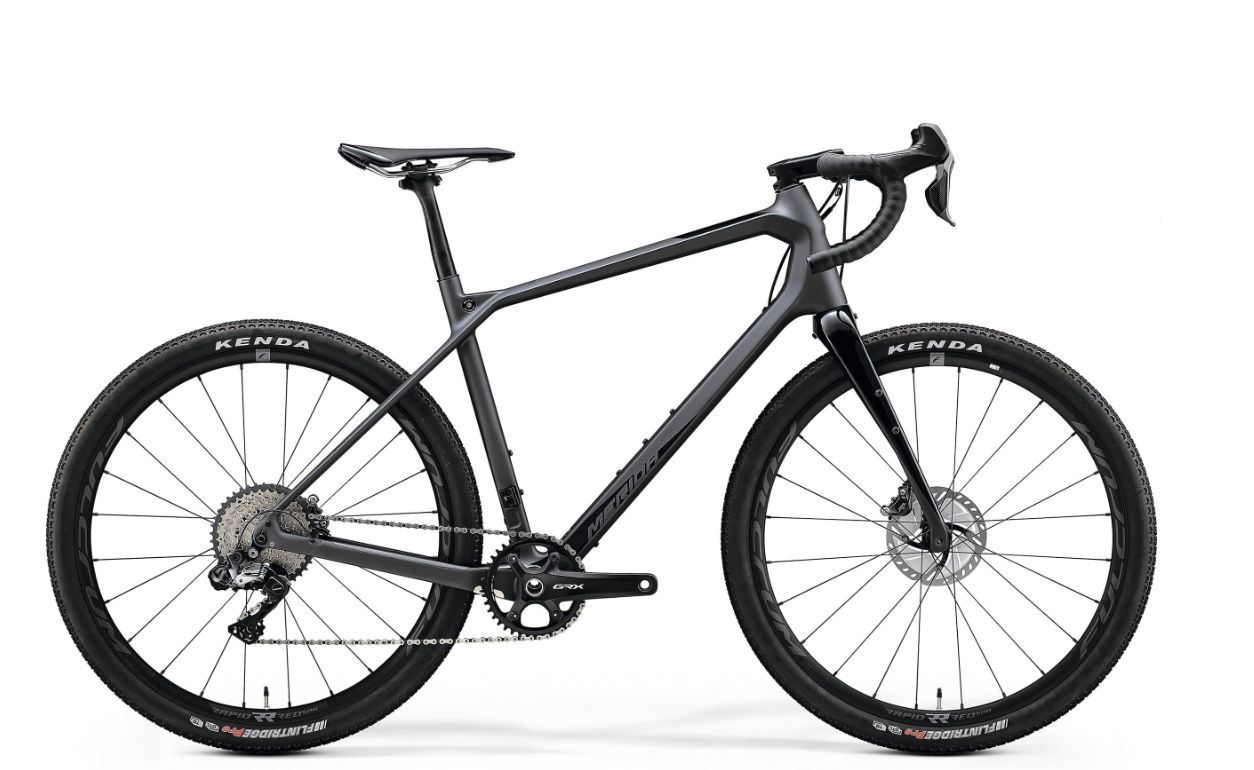

2019 Merida Silex + geometry
Full frame geometry for the 2019 Merida Silex +, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 588 | 379 | 74 | 71 | 160 | 548 | 440 | 701 | 75 | 608 | 430 | 1027 |
| S | 607 | 390 | 74 | 71 | 180 | 564 | 470 | 731 | 75 | 625 | 430 | 1044 |
| M | 626 | 400 | 74 | 71 | 200 | 580 | 500 | 760 | 75 | 642 | 430 | 1061 |
| L | 645 | 415 | 74 | 71 | 220 | 600 | 530 | 790 | 75 | 663 | 430 | 1082 |
| XL | 664 | 430 | 74 | 71 | 240 | 620 | 560 | 819 | 75 | 685 | 430 | 1104 |
All measurements in millimetres unless marked (°) for angles.
