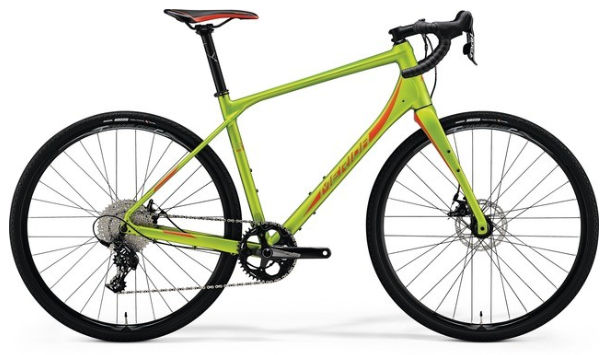

2017 Merida Silex Lite geometry
Full frame geometry for the 2017 Merida Silex Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/44 | 587 | 380 | 74 | 71 | 160 | 548 | 440 | 715 | 75 | 608 | 430 | 1027 |
| S/47 | 606 | 380 | 74 | 71 | 180 | 554 | 470 | 742 | 75 | 615 | 430 | 1034 |
| M/50 | 625 | 400 | 74 | 71 | 200 | 579 | 500 | 770 | 75 | 641 | 430 | 1060 |
| L/53 | 644 | 415 | 74 | 71 | 220 | 600 | 530 | 797 | 75 | 663 | 430 | 1082 |
| XL/56 | 663 | 430 | 74 | 71 | 240 | 620 | 560 | 825 | 75 | 684 | 430 | 1103 |
All measurements in millimetres unless marked (°) for angles.
