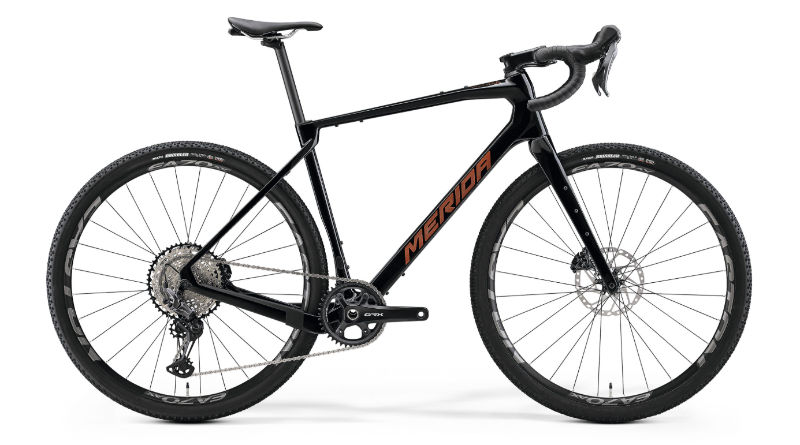

2024 Merida Silex 7000 geometry
Full frame geometry for the 2024 Merida Silex 7000, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 549 | 378 | 74.5 | 69.5 | 110 | 530 | 410 | 707 | 75 | 430 | 1031 |
| XS | 570 | 392 | 74.5 | 69.5 | 130 | 550 | 440 | 734 | 75 | 430 | 1048 |
| S | 588 | 402 | 74.5 | 69.5 | 150 | 565 | 470 | 771 | 75 | 430 | 1065 |
| M | 607 | 412 | 74.5 | 69.5 | 170 | 580 | 500 | 798 | 75 | 430 | 1082 |
| L | 626 | 426 | 74.5 | 69.5 | 190 | 600 | 530 | 825 | 75 | 430 | 1104 |
| XL | 645 | 441 | 74.5 | 69.5 | 210 | 620 | 560 | 852 | 75 | 430 | 1126 |
All measurements in millimetres unless marked (°) for angles.
