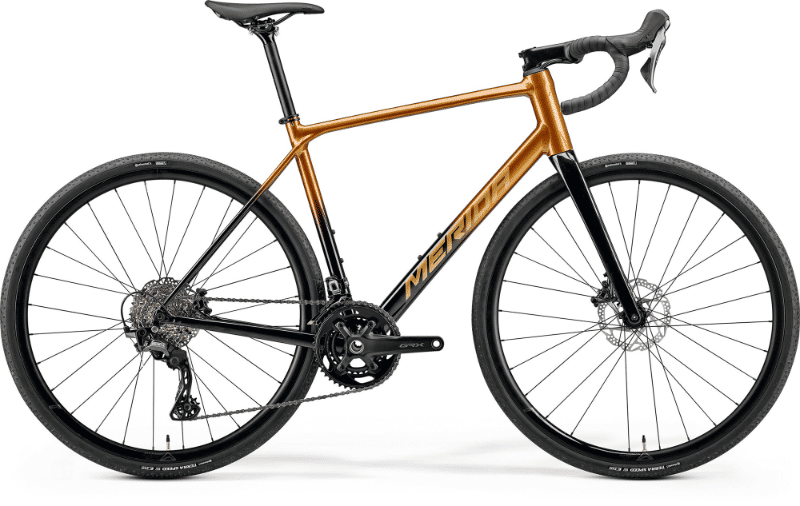

2026 Merida Scultura Endurance GR geometry
Full frame geometry for the 2026 Merida Scultura Endurance GR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4XS | 528 | 360 | 74.5 | 70 | 125 | 507 | 656 | 70 | 418 | 990 |
| 3XS | 532 | 360 | 74.5 | 70 | 130 | 507 | 680 | 70 | 418 | 991 |
| XXS | 539 | 360 | 74 | 70.5 | 140 | 515 | 708 | 66 | 418 | 992 |
| XS | 552 | 366 | 74 | 71 | 152 | 524 | 734 | 66 | 418 | 997 |
| S | 565 | 376 | 74 | 72 | 161 | 538 | 752 | 66 | 418 | 1001 |
| M | 584 | 380 | 73.5 | 73 | 177 | 553 | 770 | 66 | 418 | 1001 |
| L | 603 | 389 | 73.5 | 73 | 197 | 568 | 790 | 66 | 418 | 1017 |
| XL | 629 | 397 | 73.5 | 73.5 | 222 | 583 | 818 | 66 | 418 | 1026 |
All measurements in millimetres unless marked (°) for angles.
