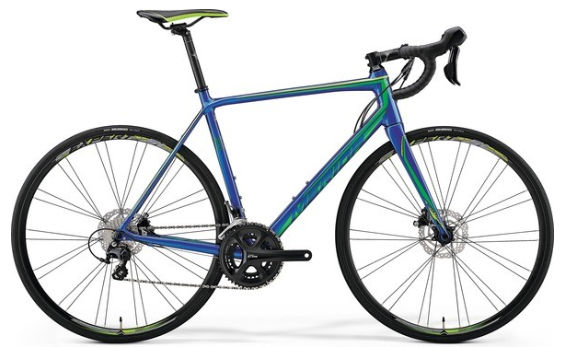

2017 Merida Scultura Disc Lite geometry
Full frame geometry for the 2017 Merida Scultura Disc Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 519 | 376 | 75 | 71 | 120 | 515 | 440 | 697 | 66 | 583 | 408 | 982 |
| 47 | 529 | 373 | 74.5 | 71 | 130 | 520 | 470 | 720 | 66 | 584 | 408 | 983 |
| 50 | 542 | 384 | 74 | 72 | 140 | 530 | 500 | 744 | 66 | 580 | 408 | 979 |
| 52 | 555 | 386 | 74 | 73 | 150 | 545 | 520 | 762 | 66 | 586 | 408 | 985 |
| 54 | 574 | 390 | 73.5 | 73 | 170 | 560 | 540 | 779 | 66 | 596 | 408 | 995 |
| 56 | 593 | 394 | 73 | 73 | 190 | 575 | 560 | 798 | 66 | 606 | 408 | 1005 |
| 59 | 619 | 401 | 73 | 73.5 | 215 | 590 | 590 | 826 | 66 | 615 | 408 | 1014 |
All measurements in millimetres unless marked (°) for angles.
