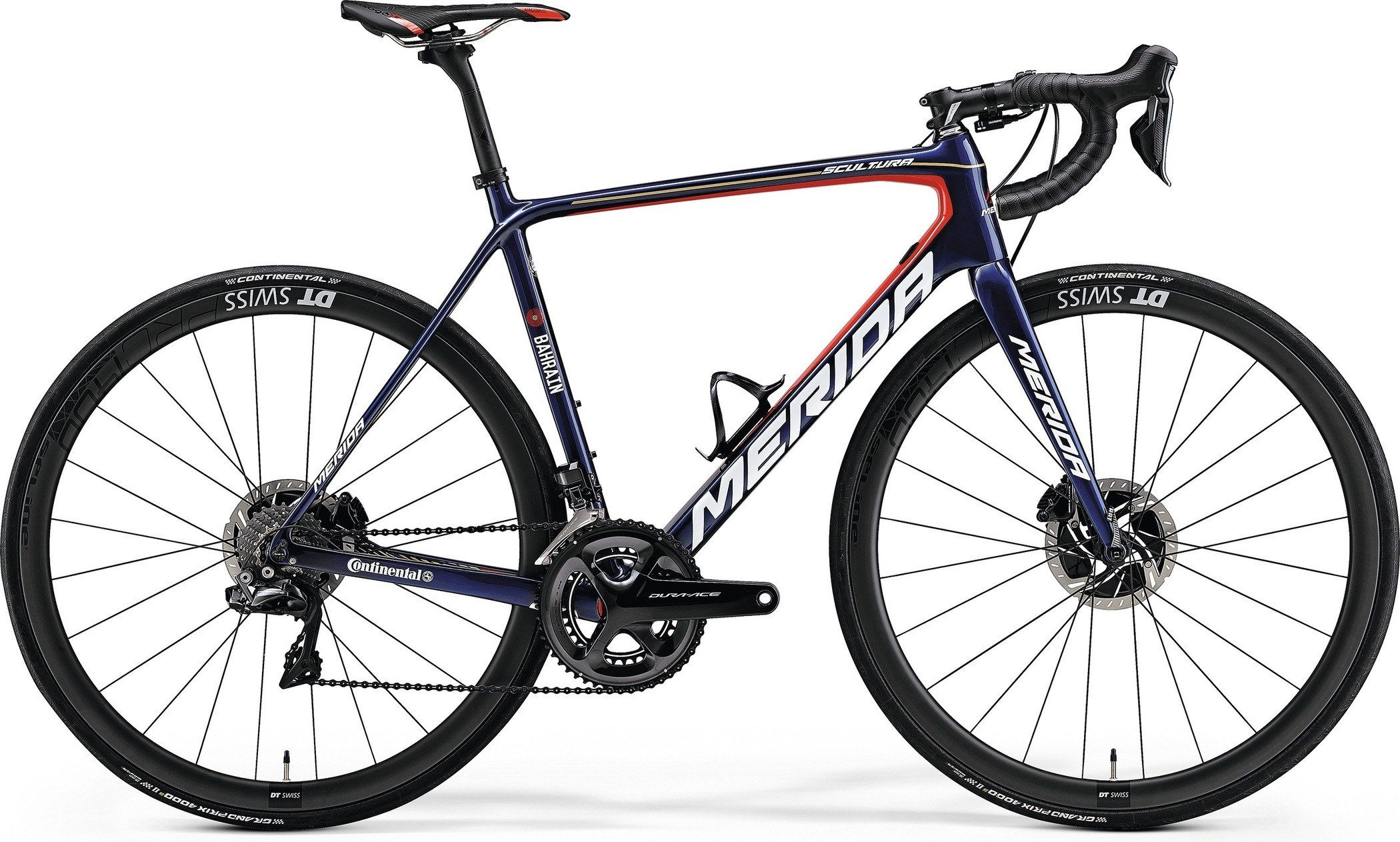

2018 Merida Scultura Disc CF4 MKII geometry
Full frame geometry for the 2018 Merida Scultura Disc CF4 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 500 | 371 | 74.5 | 71 | 105 | 510 | 440 | 691 | 66 | 575 | 408 | 974 |
| 47 | 512 | 377 | 74.5 | 71.5 | 115 | 520 | 470 | 718 | 66 | 581 | 408 | 980 |
| 50 | 524 | 383 | 74 | 72.5 | 125 | 535 | 500 | 744 | 66 | 583 | 408 | 982 |
| 52 | 543 | 388 | 74 | 73.5 | 140 | 545 | 520 | 764 | 66 | 584 | 408 | 983 |
| 54 | 557 | 394 | 73.5 | 73.5 | 155 | 560 | 540 | 779 | 66 | 594 | 408 | 993 |
| 56 | 571 | 399 | 73 | 73.5 | 170 | 575 | 560 | 798 | 66 | 604 | 408 | 1003 |
| 59 | 592 | 408 | 73 | 74 | 190 | 590 | 590 | 825 | 66 | 613 | 408 | 1012 |
All measurements in millimetres unless marked (°) for angles.
