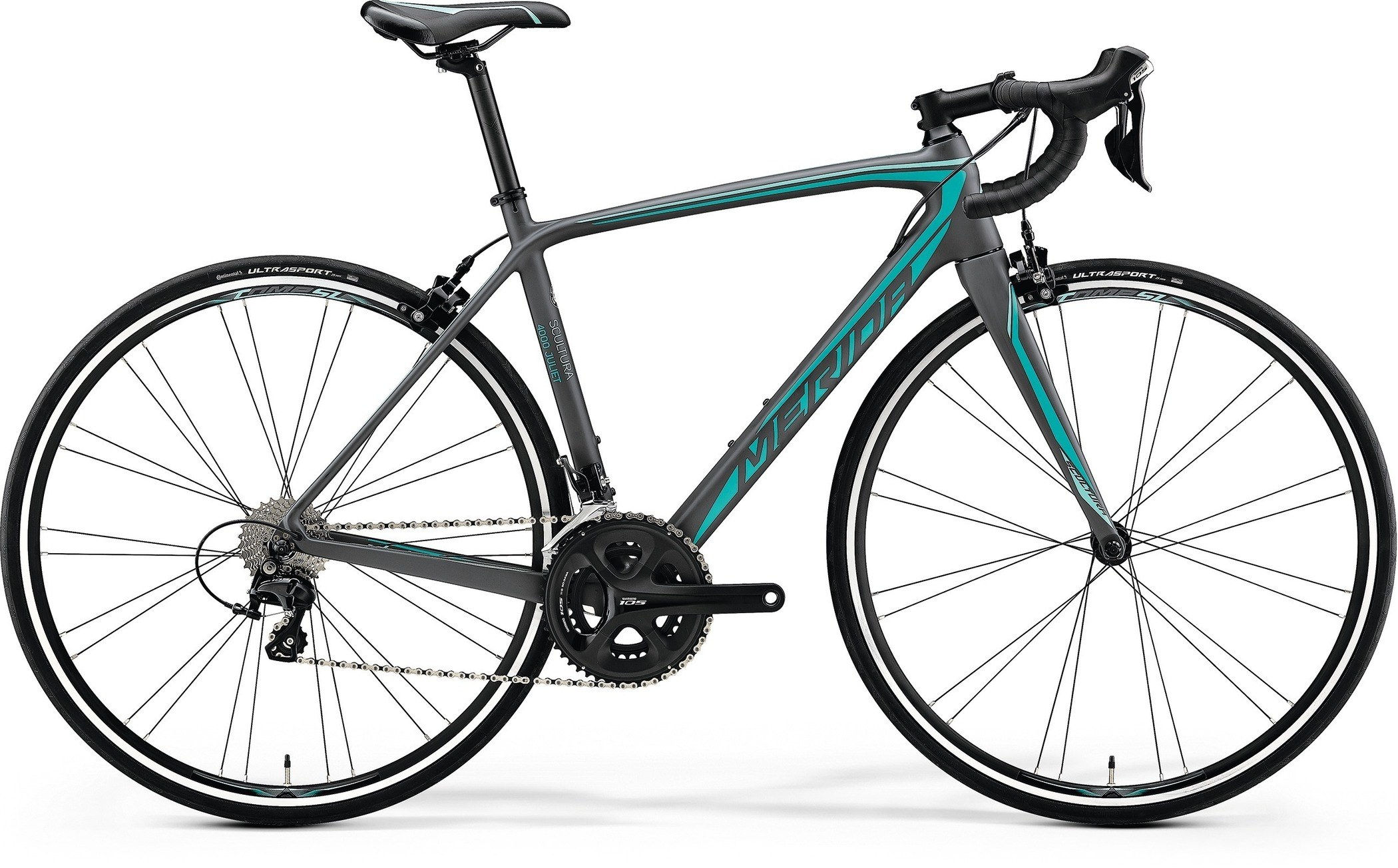

2018 Merida Scultura CF2 Juliet MKIII geometry
Full frame geometry for the 2018 Merida Scultura CF2 Juliet MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4XS/38 | 493 | 358 | 75 | 70 | 95 | 490 | 380 | 664 | 70 | 575 | 408 | 973 |
| 3XS/41 | 499 | 366 | 75 | 70.5 | 100 | 500 | 410 | 675 | 70 | 581 | 408 | 979 |
| XXS/44 | 519 | 367 | 75 | 71 | 120 | 515 | 440 | 668 | 66 | 583 | 408 | 982 |
| XS/47 | 529 | 373 | 74.5 | 71 | 130 | 520 | 470 | 708 | 66 | 584 | 408 | 983 |
| S/50 | 542 | 375 | 74 | 72 | 140 | 530 | 500 | 740 | 66 | 580 | 408 | 979 |
| SM/52 | 555 | 386 | 74 | 73 | 150 | 545 | 520 | 759 | 66 | 586 | 408 | 985 |
All measurements in millimetres unless marked (°) for angles.
