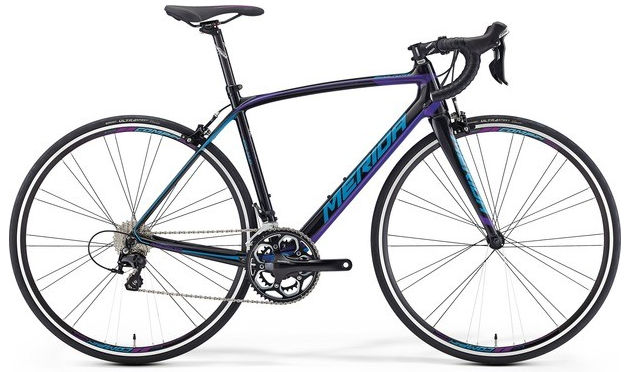

2014 Merida Scultura CF2 Juliet MKI geometry
Full frame geometry for the 2014 Merida Scultura CF2 Juliet MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 509 | 379 | 75 | 71 | 110 | 515 | 440 | 712 | 66 | 583 | 408 | 982 |
| 47 | 528 | 367 | 74 | 71 | 130 | 518 | 470 | 716 | 66 | 577 | 408 | 976 |
| 50 | 541 | 375 | 74 | 72 | 140 | 530 | 500 | 749 | 66 | 580 | 408 | 979 |
| 52 | 554 | 386 | 74 | 73 | 150 | 545 | 520 | 770 | 66 | 586 | 408 | 985 |
| 54 | 571 | 390 | 73.5 | 73 | 170 | 560 | 540 | 785 | 66 | 596 | 408 | 995 |
| 56 | 592 | 394 | 73 | 73 | 190 | 575 | 560 | 801 | 66 | 606 | 408 | 1005 |
All measurements in millimetres unless marked (°) for angles.
