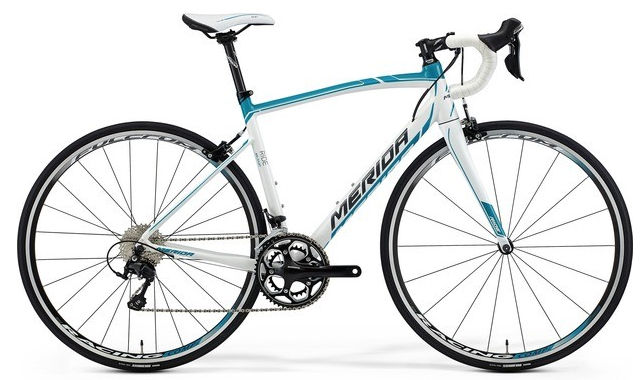

2014 Merida Ride Juliet geometry
Full frame geometry for the 2014 Merida Ride Juliet, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 536 | 374 | 75 | 71 | 140 | 518 | 440 | 757 | 65 | 585 | 410 | 986 | 43 | 70 |
| 47 | 546 | 372 | 75 | 71 | 150 | 518 | 470 | 778 | 65 | 586 | 410 | 987 | 43 | 70 |
| 50 | 559 | 375 | 74.5 | 72 | 160 | 530 | 500 | 800 | 65 | 583 | 410 | 984 | 43 | 63 |
| 52 | 570 | 377 | 74 | 72.5 | 170 | 540 | 520 | 817 | 65 | 584 | 410 | 985 | 43 | 60 |
| 54 | 591 | 375 | 73.5 | 73 | 190 | 550 | 540 | 838 | 65 | 583 | 410 | 984 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
