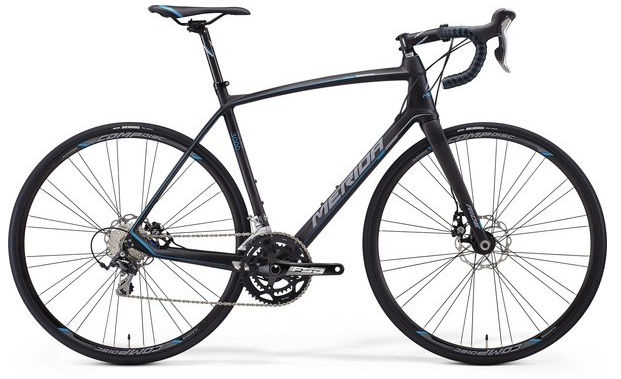

2014 Merida Ride Disc CF2 geometry
Full frame geometry for the 2014 Merida Ride Disc CF2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 541 | 353 | 73 | 71 | 140 | 518 | 784 | 69 | 569 | 412 | 971 |
| 50 | 556 | 360 | 73 | 72 | 152 | 530 | 809 | 69 | 572 | 412 | 974 |
| 52 | 570 | 368 | 73 | 72.5 | 165 | 542 | 828 | 69 | 579 | 412 | 981 |
| 54 | 596 | 375 | 73 | 73 | 180 | 554 | 847 | 69 | 586 | 412 | 988 |
| 56 | 610 | 384 | 73 | 73 | 205 | 570 | 868 | 69 | 602 | 412 | 1004 |
| 59 | 634 | 391 | 73 | 73 | 230 | 585 | 897 | 69 | 617 | 412 | 1019 |
All measurements in millimetres unless marked (°) for angles.
