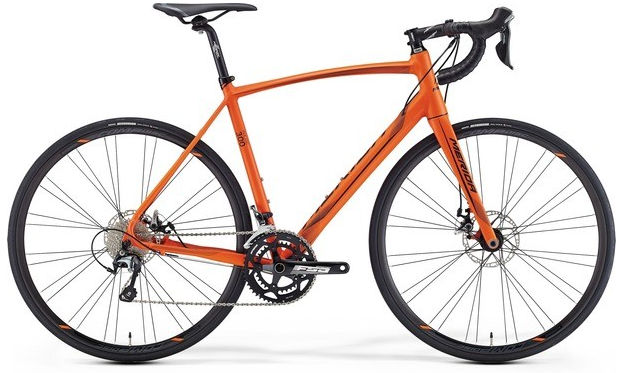

2016 Merida Ride Disc Al geometry
Full frame geometry for the 2016 Merida Ride Disc Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 541 | 368 | 74.5 | 71 | 140 | 518 | 470 | 733 | 69 | 585 | 420 | 995 |
| 50 | 556 | 376 | 74.5 | 72 | 152 | 530 | 500 | 759 | 69 | 588 | 420 | 998 |
| 52 | 570 | 379 | 74 | 72.5 | 165 | 542 | 520 | 777 | 69 | 590 | 420 | 1000 |
| 54 | 586 | 381 | 73.5 | 73 | 180 | 555 | 540 | 795 | 69 | 593 | 420 | 1003 |
| 56 | 610 | 384 | 73 | 73 | 205 | 570 | 560 | 815 | 69 | 602 | 420 | 1012 |
| 59 | 634 | 391 | 73 | 73 | 230 | 585 | 590 | 843 | 69 | 617 | 420 | 1027 |
All measurements in millimetres unless marked (°) for angles.
