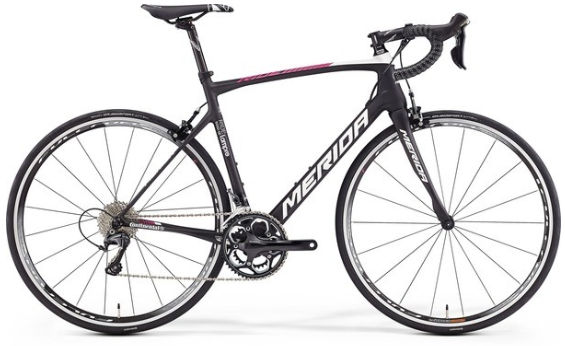

2016 Merida Ride CF3 geometry
Full frame geometry for the 2016 Merida Ride CF3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 537 | 376 | 74 | 72 | 135 | 530 | 500 | 814 | 68 | 583 | 410 | 983 |
| 52 | 558 | 375 | 73.5 | 72.5 | 155 | 540 | 520 | 833 | 68 | 584 | 410 | 984 |
| 54 | 576 | 381 | 73.5 | 73 | 172 | 550 | 540 | 833 | 68 | 589 | 413 | 992 |
| 47 | 581 | 366 | 74 | 71.5 | 130 | 518 | 470 | 791 | 68 | 576 | 410 | 976 |
| 56 | 598 | 382 | 73 | 73 | 195 | 565 | 560 | 872 | 68 | 599 | 413 | 1002 |
| 59 | 624 | 389 | 73 | 73.5 | 220 | 580 | 590 | 901 | 68 | 615 | 413 | 1019 |
All measurements in millimetres unless marked (°) for angles.
