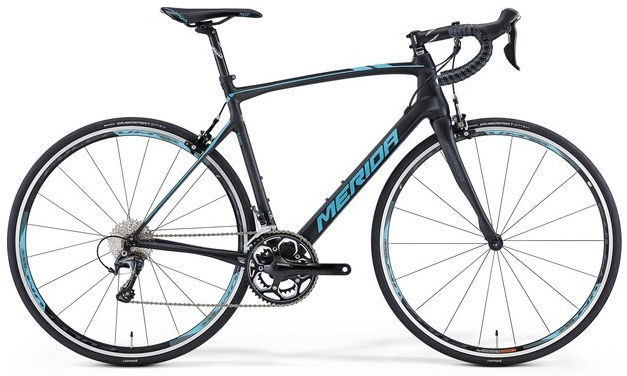

2014 Merida Ride CF2 geometry

Name: 2014 Merida Ride CF2
Brand: Merida

Full frame geometry for the 2014 Merida Ride CF2, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
47	542	373	75	71	150	518	470	776	65	585	410	986	43	70
50	542	373	74.5	72	150	530	500	792	65	577	410	978	43	63
52	555	376	74	72.5	160	540	520	809	65	579	410	980	43	60
54	567	378	73.5	73	170	550	540	826	65	579	410	980	43	57
56	587	376	73	73	190	565	560	847	65	583	410	984	43	57
59	611	378	73	73	215	580	590	875	65	592	410	993	43	57

All measurements in millimetres unless marked (°) for angles.
