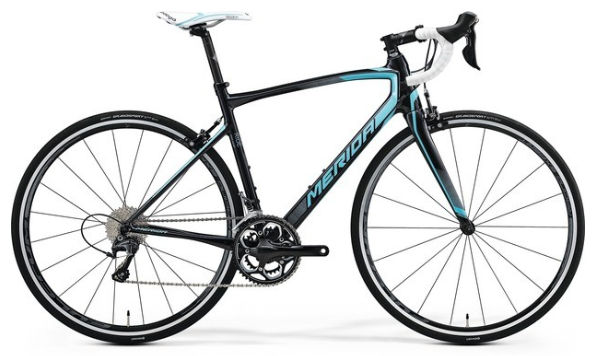

2017 Merida Ride CF2 Juliet geometry
Full frame geometry for the 2017 Merida Ride CF2 Juliet, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 542 | 373 | 75 | 71 | 150 | 518 | 470 | 729 | 65 | 588 | 410 | 989 |
| 50 | 555 | 376 | 74.5 | 72 | 160 | 530 | 500 | 751 | 65 | 586 | 410 | 987 |
| 52 | 567 | 378 | 74 | 72.5 | 170 | 540 | 520 | 769 | 65 | 587 | 410 | 988 |
| 54 | 587 | 376 | 73.5 | 73 | 190 | 550 | 540 | 788 | 65 | 587 | 410 | 988 |
| 56 | 611 | 378 | 73 | 73 | 215 | 565 | 560 | 809 | 65 | 596 | 410 | 997 |
| 59 | 635 | 386 | 73 | 73 | 240 | 580 | 590 | 837 | 65 | 611 | 410 | 1012 |
All measurements in millimetres unless marked (°) for angles.
