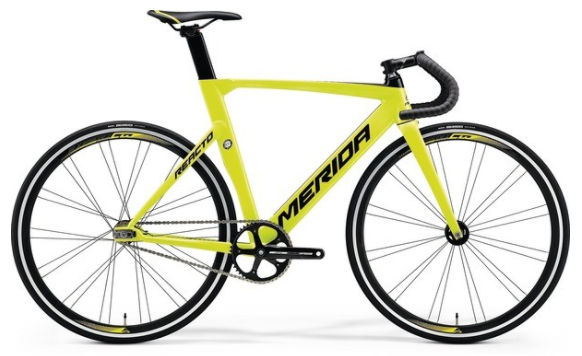

2017 Merida Reacto Track geometry
Full frame geometry for the 2017 Merida Reacto Track, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 479 | 381 | 74 | 71 | 95 | 518 | 470 | 739 | 55 | 561 | 411 | 966 |
| 50 | 492 | 389 | 74 | 72 | 105 | 530 | 500 | 764 | 55 | 565 | 411 | 970 |
| 52 | 510 | 394 | 73.5 | 73 | 120 | 545 | 520 | 783 | 55 | 566 | 411 | 971 |
| 54 | 524 | 400 | 73 | 73 | 135 | 560 | 540 | 800 | 55 | 577 | 411 | 982 |
| 56 | 538 | 411 | 73 | 73 | 150 | 575 | 560 | 818 | 55 | 592 | 411 | 997 |
| 59 | 553 | 421 | 73 | 73 | 165 | 590 | 590 | 843 | 55 | 607 | 411 | 1012 |
All measurements in millimetres unless marked (°) for angles.
