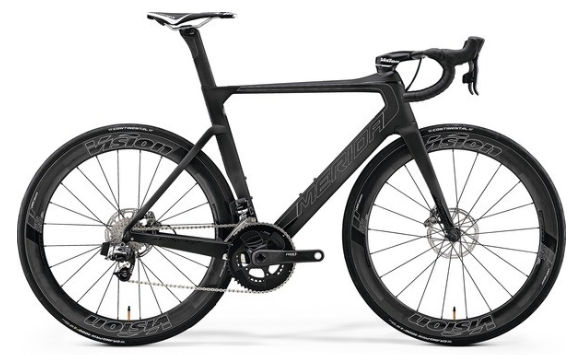

2017 Merida Reacto Disc CF4 geometry
Full frame geometry for the 2017 Merida Reacto Disc CF4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/47 | 516 | 377 | 74.5 | 71.5 | 116 | 520 | 470 | 735 | 70 | 577 | 408 | 975 |
| S/50 | 529 | 383 | 74 | 72.5 | 126 | 535 | 500 | 761 | 70 | 580 | 408 | 978 |
| SM/52 | 543 | 389 | 74 | 73.5 | 142 | 545 | 520 | 782 | 66 | 581 | 408 | 980 |
| ML/54 | 557 | 395 | 72.5 | 73.5 | 157 | 560 | 540 | 800 | 66 | 591 | 408 | 990 |
| L/56 | 572 | 400 | 73 | 73.5 | 172 | 575 | 560 | 819 | 66 | 601 | 408 | 1000 |
| XL/59 | 593 | 409 | 73 | 74 | 192 | 590 | 590 | 844 | 66 | 610 | 408 | 1009 |
All measurements in millimetres unless marked (°) for angles.
