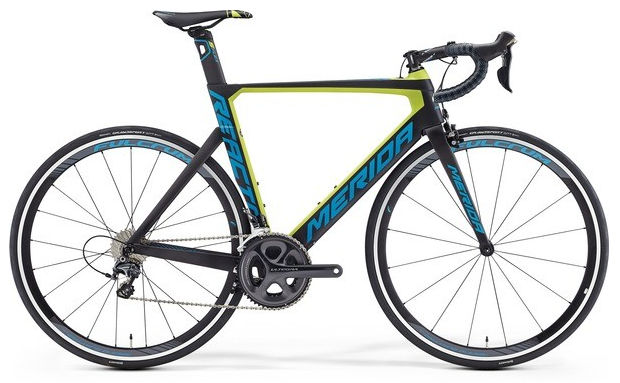

2015 Merida Reacto CF3 geometry

Name: 2015 Merida Reacto CF3
Brand: Merida

Full frame geometry for the 2015 Merida Reacto CF3, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
47	514	371	73.5	71	109	520	470	769	61	569	405	966	43	70
50	527	379	73.5	72	124	535	500	791	61	574	405	971	43	63
52	540	390	73.5	73	139	545	520	808	61	581	405	978	43	57
54	559	400	73.5	73	159	560	540	828	61	597	405	994	43	57
56	578	398	73.5	73	184	575	560	848	61	602	405	999	43	57
59	602	406	73.5	73	209	590	590	876	61	617	405	1014	43	57

All measurements in millimetres unless marked (°) for angles.
